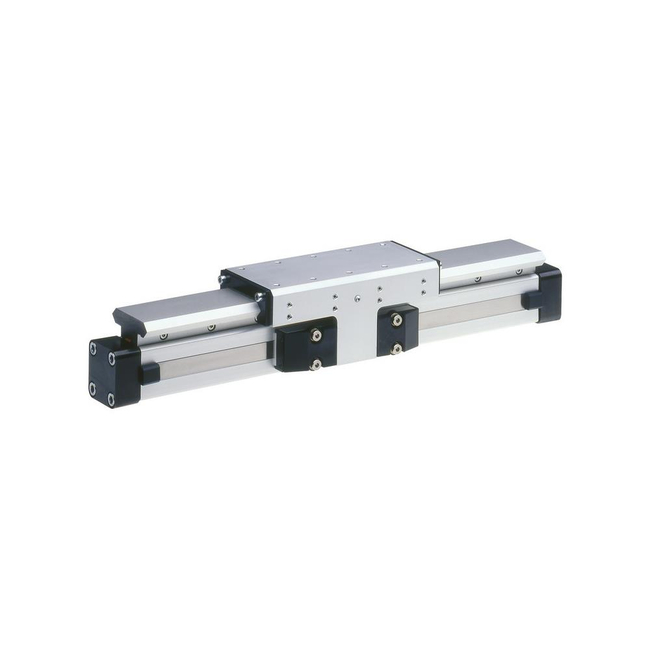

OSPE25-SB Screw Driven, SLIDELINE Plain Bearing, Rodless Electric Linear Actuator

OSPE25-SB Screw Driven, SLIDELINE Plain Bearing, Rodless Electric Linear Actuator

Brand: Parker Hannifin
Add Product to My Catalog

The OSPE25-SB screw driven electric linear actuator with SLIDELINE plain bearing guide is engineered to offer medium precision positioning within a compact, economic design that is easy to integrate into any machine layout and ideally suited to transfer handling operations within industrial, manufacturing and assembly environments.
Features
  • Ball screw driven actuator for dynamic and precise positioning with medium travel
  • High acceleration and efficiency for demanding processes
  • Economic plain bearing solution for medium loads
  • Anodized aluminum guide rail with low friction gliding elements
  • Pre-configured motor, gearhead and control package for simplified installation
  • Integrated seal strip offering IP54 protection
  • Pre-configured motor and gearhead mounting kits for simplified installation
  • Contactless sensing for positional feedback

Specifications

Brand

Additional Protection Option

  • Steel Strip Cover

Approvals & Certifications

  • Cleanroom Certified (Custom Option)

Bearing Type

  • SLIDELINE Plain Bearing Guide

Corrosion Resistant Option

  • No

Drive Type

  • Ballscrew

Idler Unit Option

  • No

Linear Feedback Device

  • No

Maximum Acceleration (Inch/S2)

  • 77.3

Maximum Acceleration (m/S2)

  • 2

Maximum Payload FZ (N)

  • 675

Maximum Speed (inch/sec)

  • 9.8

Maximum Speed (m/sec)

  • 0.25

Maximum Stroke (inch)

  • 43

Maximum Stroke (mm)

  • 1100

Maximum Thrust FX (Lbs)

  • 56

Maximum Thrust FX (N)

  • 250

Position Repeatability (± Inch)

  • 0.002

Position Repeatability (± mm)

  • 0.05

Profile Width (mm)

  • 41

Series

  • OSP-E

Typical Payload FZ (N)

  • 150 - 675

  • Factory Automation
  • Miscellaneous Industrial
  • Miscellaneous Manufacturing
  • Packaging Machinery
  • Printing and Marking Equipment
  • Vehicle Assembly Facilities
  • Coatings / Ink / Paint
  • Food & Beverage
