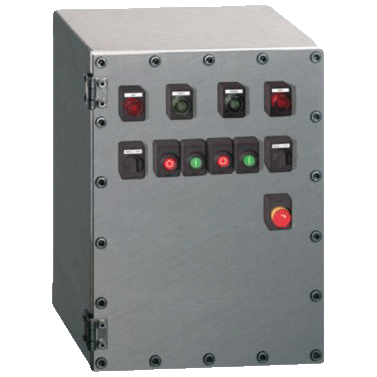

Standard Motor Starters CUBEx Series 8264/5

Standard Motor Starters CUBEx Series 8264/5

Brand: R. STAHL AG
Add Product to My Catalog

R. STAHL Series 8264/5 CUBEx standard motor starters are installed in a seawater-resistant Ex d enclosure and are suitable for a large temperature range.

They are available in various control variants.

As an option, the control panels can be fitted with main switches, main and control fuses and control devices as per the customer's requirements.
Features
  • Motor starters with international approval
  • Robust design: seawater-resistant enclosure, can be used in a large temperature range
  • Control panels: Direct-On-Line Motor Starter DOL, star-delta contactor combinations YD, reversing contactor combinations

1 - 12 of 29 Part Numbers
143158
143158
R. STAHL Direct-On-Line Motor Starter (DOL)
Motor starters with international approval

Robust design: seawater-resistant enclosure, can be used in a large temperature range

Control panels: Direct-On-Line Motor Starter DOL, star-delta contactor combinations YD, reversing contactor combinations

Ambient Conditions

  • Ambient temperature - -20 °C ... +40 °C
  • Ambient temperature max. - +40 °C
  • Ambient temperature min. - -20 °C

Components

  • Terminal - 4 x 6 mm2 3 x 4 mm2

Electrical Data

  • Rated operational voltage AC - 400.00 - 400.00 V

Explosion Protection

  • Ambient temperature °C - -20 - 40 °C
  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - KEMA 01 ATEX 2145 X
  • ATEX gas certificate - KEMA 01 ATEX 2145 X
  • Certificates - ATEX (DEK), Brazil (ULB), Canada / USA (UL), China (CQST), IECEx (DEK), India (PESO), Korea (KGS), Taiwan (ITRI)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T80 °C Db
  • Dust explosion protection IECEx - Ex tb IIIC T80 °C Db
  • Gas explosion protection ATEX - II 2 G Ex db IIB+H2 T6 Gb
  • Gas explosion protection IECEx - Ex db IIB+H2 T6 Gb
  • IECEX dust certificate - IECEx KEM 07.0051 X
  • IECEX gas certificate - IECEx KEM 07.0051X

General

  • Functional Description - R. STAHL Series 8264/5 CUBEx standard motor starters are installed in a seawater-resistant Ex d enclosure and are suitable for a large temperature range. They are available in various control variants. As an option, the control panels can be fitted with main switches, main and control fuses and control devices as per the customer's requirements.
  • Highlights - Motor starters with international approval Robust design: seawater-resistant enclosure, can be used in a large temperature range Control panels: Direct-On-Line Motor Starter DOL, star-delta contactor combinations YD, reversing contactor combinations
  • Product Description - Direct-on-line motor starter (DOL)
  • Product Type - 8264/5-SM-ES5,5kW400V-T
  • Title Product Variant Technical Data - 8264/5-SM-ES5,5kW400V-T DOL motor-contr.
  • WebCode - 8264D

Mechanical Data

  • Cable entry - 1 x M32
  • Cable entry 2 - 3 x M25
  • Degree of protection (IP) - IP65
  • Enclosure - 8264/5212
  • Enclosure material - Aluminium, copper-free, Seawater-resistant
  • Height - 270.000 mm
  • Length - 360.000 mm
  • Terminals - 4 x 6 mm2
  • Terminals 2 - 3 x 4 mm2
  • Threaded holes on bottom - 1 x M32 3 x M25
  • Weight - 30.000 kg
  • Width - 235.000 mm
143161
143161
R. STAHL Direct-On-Line Motor Starter (DOL)
Motor starters with international approval

Robust design: seawater-resistant enclosure, can be used in a large temperature range

Control panels: Direct-On-Line Motor Starter DOL, star-delta contactor combinations YD, reversing contactor combinations

Ambient Conditions

  • Ambient temperature - -20 °C ... +40 °C
  • Ambient temperature max. - +40 °C
  • Ambient temperature min. - -20 °C

Components

  • Terminal - 4 x 10 mm2 3 x 6 mm2

Electrical Data

  • Rated operational voltage AC - 400.00 - 400.00 V

Explosion Protection

  • Ambient temperature °C - -20 - 40 °C
  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - KEMA 01 ATEX 2145 X
  • ATEX gas certificate - KEMA 01 ATEX 2145 X
  • Certificates - ATEX (DEK), Brazil (ULB), Canada / USA (UL), China (CQST), IECEx (DEK), India (PESO), Korea (KGS), Taiwan (ITRI)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T80 °C Db
  • Dust explosion protection IECEx - Ex tb IIIC T80 °C Db
  • Gas explosion protection ATEX - II 2 G Ex db IIB+H2 T6 Gb
  • Gas explosion protection IECEx - Ex db IIB+H2 T6 Gb
  • IECEX dust certificate - IECEx KEM 07.0051 X
  • IECEX gas certificate - IECEx KEM 07.0051X

General

  • Functional Description - R. STAHL Series 8264/5 CUBEx standard motor starters are installed in a seawater-resistant Ex d enclosure and are suitable for a large temperature range. They are available in various control variants. As an option, the control panels can be fitted with main switches, main and control fuses and control devices as per the customer's requirements.
  • Highlights - Motor starters with international approval Robust design: seawater-resistant enclosure, can be used in a large temperature range Control panels: Direct-On-Line Motor Starter DOL, star-delta contactor combinations YD, reversing contactor combinations
  • Product Description - Direct-on-line motor starter (DOL)
  • Product Type - 8264/5-SM-ES7,5kW400V-T
  • Title Product Variant Technical Data - 8264/5-SM-ES7,5kW400V-T DOL motor-contr.
  • WebCode - 8264D

Mechanical Data

  • Cable entry - 1 x M32
  • Cable entry 2 - 3 x M25
  • Degree of protection (IP) - IP65
  • Enclosure - 8264/5212
  • Enclosure material - Aluminium, copper-free, Seawater-resistant
  • Height - 270.000 mm
  • Length - 360.000 mm
  • Terminals - 4 x 10 mm2
  • Terminals 2 - 3 x 6 mm2
  • Threaded holes on bottom - 1 x M32 3 x M25
  • Weight - 30.000 kg
  • Width - 235.000 mm
143163
143163
R. STAHL Direct-On-Line Motor Starter (DOL)
Motor starters with international approval

Robust design: seawater-resistant enclosure, can be used in a large temperature range

Control panels: Direct-On-Line Motor Starter DOL, star-delta contactor combinations YD, reversing contactor combinations

Ambient Conditions

  • Ambient temperature - -20 °C ... +40 °C
  • Ambient temperature max. - +40 °C
  • Ambient temperature min. - -20 °C

Components

  • Terminal - 4 x 10 mm2 3 x 6 mm2

Electrical Data

  • Rated operational voltage AC - 400.00 - 400.00 V

Explosion Protection

  • Ambient temperature °C - -20 - 40 °C
  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - KEMA 01 ATEX 2145 X
  • ATEX gas certificate - KEMA 01 ATEX 2145 X
  • Certificates - ATEX (DEK), Brazil (ULB), Canada / USA (UL), China (CQST), IECEx (DEK), India (PESO), Korea (KGS), Taiwan (ITRI)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T80 °C Db
  • Dust explosion protection IECEx - Ex tb IIIC T80 °C Db
  • Gas explosion protection ATEX - II 2 G Ex db IIB+H2 T6 Gb
  • Gas explosion protection IECEx - Ex db IIB+H2 T6 Gb
  • IECEX dust certificate - IECEx KEM 07.0051 X
  • IECEX gas certificate - IECEx KEM 07.0051X

General

  • Functional Description - R. STAHL Series 8264/5 CUBEx standard motor starters are installed in a seawater-resistant Ex d enclosure and are suitable for a large temperature range. They are available in various control variants. As an option, the control panels can be fitted with main switches, main and control fuses and control devices as per the customer's requirements.
  • Highlights - Motor starters with international approval Robust design: seawater-resistant enclosure, can be used in a large temperature range Control panels: Direct-On-Line Motor Starter DOL, star-delta contactor combinations YD, reversing contactor combinations
  • Product Description - Direct-on-line motor starter (DOL)
  • Product Type - 8264/5-SM-ES11kW400V-T
  • Title Product Variant Technical Data - 8264/5-SM-ES11kW400V-T DOL motor-contr.
  • WebCode - 8264D

Mechanical Data

  • Cable entry - 1 x M32
  • Cable entry 2 - 3 x M25
  • Degree of protection (IP) - IP65
  • Enclosure - 8264/5212
  • Enclosure material - Aluminium, copper-free, Seawater-resistant
  • Height - 270.000 mm
  • Length - 360.000 mm
  • Terminals - 4 x 10 mm2
  • Terminals 2 - 3 x 6 mm2
  • Threaded holes on bottom - 1 x M32 3 x M25
  • Weight - 30.000 kg
  • Width - 235.000 mm
143167
143167
R. STAHL Direct-On-Line Motor Starter (DOL)
  • Motor starters with international approval
  • Robust design: seawater-resistant enclosure, can be used in a large temperature range
  • Control panels: Direct-On-Line Motor Starter DOL, star-delta contactor combinations YD, reversing contactor combinations

Ambient Conditions

  • Ambient temperature - -20 °C ... +40 °C
  • Ambient temperature max. - +40 °C
  • Ambient temperature min. - -20 °C

Components

  • Terminal - 4 x 16 mm2 3 x 10 mm2

Electrical Data

  • Rated operational voltage AC - 400.00 - 400.00 V

Explosion Protection

  • Ambient temperature °C - -20 - 40 °C
  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - KEMA 01 ATEX 2145 X
  • ATEX gas certificate - KEMA 01 ATEX 2145 X
  • Certificates - ATEX (DEK), Brazil (ULB), Canada / USA (UL), China (CQST), IECEx (DEK), India (PESO), Korea (KGS), Taiwan (ITRI)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T80 °C Db
  • Dust explosion protection IECEx - Ex tb IIIC T80 °C Db
  • Gas explosion protection ATEX - II 2 G Ex db IIB+H2 T6 Gb
  • Gas explosion protection IECEx - Ex db IIB+H2 T6 Gb
  • IECEX dust certificate - IECEx KEM 07.0051 X
  • IECEX gas certificate - IECEx KEM 07.0051X

General

  • Functional Description - R. STAHL Series 8264/5 CUBEx standard motor starters are installed in a seawater-resistant Ex d enclosure and are suitable for a large temperature range. They are available in various control variants. As an option, the control panels can be fitted with main switches, main and control fuses and control devices as per the customer's requirements.
  • Highlights - Motor starters with international approval Robust design: seawater-resistant enclosure, can be used in a large temperature range Control panels: Direct-On-Line Motor Starter DOL, star-delta contactor combinations YD, reversing contactor combinations
  • Product Description - Direct-on-line motor starter (DOL)
  • Product Type - 8264/5-SM-ES18kW400V-T
  • Title Product Variant Technical Data - 8264/5-SM-ES18kW400V-T DOL motor-contr.
  • WebCode - 8264D

Mechanical Data

  • Cable entry - 1 x M32
  • Cable entry 2 - 3 x M25
  • Degree of protection (IP) - IP65
  • Enclosure - 8264/5212
  • Enclosure material - Aluminium, copper-free, Seawater-resistant
  • Height - 270.000 mm
  • Length - 360.000 mm
  • Terminals - 4 x 16 mm2
  • Terminals 2 - 3 x 10 mm2
  • Threaded holes on bottom - 1 x M32 3 x M25
  • Weight - 30.000 kg
  • Width - 235.000 mm
143169
143169
R. STAHL Direct-On-Line Motor Starter (DOL)
Motor starters with international approval

Robust design: seawater-resistant enclosure, can be used in a large temperature range

Control panels: Direct-On-Line Motor Starter DOL, star-delta contactor combinations YD, reversing contactor combinations

Ambient Conditions

  • Ambient temperature - -20 °C ... +40 °C
  • Ambient temperature max. - +40 °C
  • Ambient temperature min. - -20 °C

Components

  • Terminal - 4 x 35 mm2 3 x 10 mm2

Electrical Data

  • Rated operational voltage AC - 400.00 - 400.00 V

Explosion Protection

  • Ambient temperature °C - -20 - 40 °C
  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - KEMA 01 ATEX 2145 X
  • ATEX gas certificate - KEMA 01 ATEX 2145 X
  • Certificates - ATEX (DEK), Brazil (ULB), Canada / USA (UL), China (CQST), IECEx (DEK), India (PESO), Korea (KGS), Taiwan (ITRI)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T80 °C Db
  • Dust explosion protection IECEx - Ex tb IIIC T80 °C Db
  • Gas explosion protection ATEX - II 2 G Ex db IIB+H2 T6 Gb
  • Gas explosion protection IECEx - Ex db IIB+H2 T6 Gb
  • IECEX dust certificate - IECEx KEM 07.0051 X
  • IECEX gas certificate - IECEx KEM 07.0051X

General

  • Functional Description - R. STAHL Series 8264/5 CUBEx standard motor starters are installed in a seawater-resistant Ex d enclosure and are suitable for a large temperature range. They are available in various control variants. As an option, the control panels can be fitted with main switches, main and control fuses and control devices as per the customer's requirements.
  • Highlights - Motor starters with international approval Robust design: seawater-resistant enclosure, can be used in a large temperature range Control panels: Direct-On-Line Motor Starter DOL, star-delta contactor combinations YD, reversing contactor combinations
  • Product Description - Direct-on-line motor starter (DOL)
  • Product Type - 8264/5-SM-ES22kW400V-T
  • Title Product Variant Technical Data - 8264/5-SM-ES22kW400V-T DOL motor-contr.
  • WebCode - 8264D

Mechanical Data

  • Cable entry - 1 x M40
  • Cable entry 2 - 1 x M32
  • Cable entry 3 - 2 x M25
  • Degree of protection (IP) - IP65
  • Enclosure - 8264/5212
  • Enclosure material - Aluminium, copper-free, Seawater-resistant
  • Height - 270.000 mm
  • Length - 360.000 mm
  • Terminals - 4 x 35 mm2
  • Terminals 2 - 3 x 10 mm2
  • Threaded holes on bottom - 1 x M40 1 x M32 2 x M25
  • Weight - 30.000 kg
  • Width - 235.000 mm
143171
143171
R. STAHL Direct-On-Line Motor Starter (DOL)
Motor starters with international approval

Robust design: seawater-resistant enclosure, can be used in a large temperature range

Control panels: Direct-On-Line Motor Starter DOL, star-delta contactor combinations YD, reversing contactor combinations

Ambient Conditions

  • Ambient temperature - -20 °C ... +40 °C
  • Ambient temperature max. - +40 °C
  • Ambient temperature min. - -20 °C

Components

  • Terminal - 4 x 35 mm2 3 x 10 mm2

Electrical Data

  • Rated operational voltage AC - 400.00 - 400.00 V

Explosion Protection

  • Ambient temperature °C - -20 - 40 °C
  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - KEMA 01 ATEX 2145 X
  • ATEX gas certificate - KEMA 01 ATEX 2145 X
  • Certificates - ATEX (DEK), Brazil (ULB), Canada / USA (UL), China (CQST), IECEx (DEK), India (PESO), Korea (KGS), Taiwan (ITRI)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T80 °C Db
  • Dust explosion protection IECEx - Ex tb IIIC T80 °C Db
  • Gas explosion protection ATEX - II 2 G Ex db IIB+H2 T6 Gb
  • Gas explosion protection IECEx - Ex db IIB+H2 T6 Gb
  • IECEX dust certificate - IECEx KEM 07.0051 X
  • IECEX gas certificate - IECEx KEM 07.0051X

General

  • Functional Description - R. STAHL Series 8264/5 CUBEx standard motor starters are installed in a seawater-resistant Ex d enclosure and are suitable for a large temperature range. They are available in various control variants. As an option, the control panels can be fitted with main switches, main and control fuses and control devices as per the customer's requirements.
  • Highlights - Motor starters with international approval Robust design: seawater-resistant enclosure, can be used in a large temperature range Control panels: Direct-On-Line Motor Starter DOL, star-delta contactor combinations YD, reversing contactor combinations
  • Product Description - Direct-on-line motor starter (DOL)
  • Product Type - 8264/5-SM-ES30kW400V-T
  • Title Product Variant Technical Data - 8264/5-SM-ES30kW400V-T DOL motor-contr.
  • WebCode - 8264D

Mechanical Data

  • Cable entry - 1 x M40
  • Cable entry 2 - 1 x M32
  • Cable entry 3 - 2 x M25
  • Degree of protection (IP) - IP65
  • Enclosure - 8264/5222
  • Enclosure material - Aluminium, copper-free, Seawater-resistant
  • Height - 270.000 mm
  • Length - 360.000 mm
  • Terminals - 4 x 35 mm2
  • Terminals 2 - 3 x 10 mm2
  • Threaded holes on bottom - 1 x M40 1 x M32 2 x M25
  • Weight - 39.000 kg
  • Width - 360.000 mm
143173
143173
R. STAHL Direct-On-Line Motor Starter (DOL)
Motor starters with international approval

Robust design: seawater-resistant enclosure, can be used in a large temperature range

Control panels: Direct-On-Line Motor Starter DOL, star-delta contactor combinations YD, reversing contactor combinations

Ambient Conditions

  • Ambient temperature - -20 °C ... +40 °C
  • Ambient temperature max. - +40 °C
  • Ambient temperature min. - -20 °C

Components

  • Terminal - 4 x 35 mm2 3 x 10 mm2

Electrical Data

  • Rated operational voltage AC - 400.00 - 400.00 V

Explosion Protection

  • Ambient temperature °C - -20 - 40 °C
  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - KEMA 01 ATEX 2145 X
  • ATEX gas certificate - KEMA 01 ATEX 2145 X
  • Certificates - ATEX (DEK), Brazil (ULB), Canada / USA (UL), China (CQST), IECEx (DEK), India (PESO), Korea (KGS), Taiwan (ITRI)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T80 °C Db
  • Dust explosion protection IECEx - Ex tb IIIC T80 °C Db
  • Gas explosion protection ATEX - II 2 G Ex db IIB+H2 T6 Gb
  • Gas explosion protection IECEx - Ex db IIB+H2 T6 Gb
  • IECEX dust certificate - IECEx KEM 07.0051 X
  • IECEX gas certificate - IECEx KEM 07.0051X

General

  • Functional Description - R. STAHL Series 8264/5 CUBEx standard motor starters are installed in a seawater-resistant Ex d enclosure and are suitable for a large temperature range. They are available in various control variants. As an option, the control panels can be fitted with main switches, main and control fuses and control devices as per the customer's requirements.
  • Highlights - Motor starters with international approval Robust design: seawater-resistant enclosure, can be used in a large temperature range Control panels: Direct-On-Line Motor Starter DOL, star-delta contactor combinations YD, reversing contactor combinations
  • Product Description - Direct-on-line motor starter (DOL)
  • Product Type - 8264/5-SM-ES37kW400V-T
  • Title Product Variant Technical Data - 8264/5-SM-ES37kW400V-T DOL motor-contr.
  • WebCode - 8264D

Mechanical Data

  • Cable entry - 1 x M40
  • Cable entry 2 - 1 x M32
  • Cable entry 3 - 2 x M25
  • Degree of protection (IP) - IP65
  • Enclosure - 8264/5222
  • Enclosure material - Aluminium, copper-free, Seawater-resistant
  • Height - 270.000 mm
  • Length - 360.000 mm
  • Terminals - 4 x 35 mm2
  • Terminals 2 - 3 x 10 mm2
  • Threaded holes on bottom - 1 x M40 1 x M32 2 x M25
  • Weight - 39.000 kg
  • Width - 360.000 mm
143175
143175
R. STAHL Direct-On-Line Motor Starter (DOL)
Motor starters with international approval

Robust design: seawater-resistant enclosure, can be used in a large temperature range

Control panels: Direct-On-Line Motor Starter DOL, star-delta contactor combinations YD, reversing contactor combinations

Ambient Conditions

  • Ambient temperature - -20 °C ... +40 °C
  • Ambient temperature max. - +40 °C
  • Ambient temperature min. - -20 °C

Components

  • Terminal - 4 x 50 mm2 3 x 35 mm2

Electrical Data

  • Rated operational voltage AC - 400.00 - 400.00 V

Explosion Protection

  • Ambient temperature °C - -20 - 40 °C
  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - KEMA 01 ATEX 2145 X
  • ATEX gas certificate - KEMA 01 ATEX 2145 X
  • Certificates - ATEX (DEK), Brazil (ULB), Canada / USA (UL), China (CQST), IECEx (DEK), India (PESO), Korea (KGS), Taiwan (ITRI)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T80 °C Db
  • Dust explosion protection IECEx - Ex tb IIIC T80 °C Db
  • Gas explosion protection ATEX - II 2 G Ex db IIB+H2 T6 Gb
  • Gas explosion protection IECEx - Ex db IIB+H2 T6 Gb
  • IECEX dust certificate - IECEx KEM 07.0051 X
  • IECEX gas certificate - IECEx KEM 07.0051X

General

  • Functional Description - R. STAHL Series 8264/5 CUBEx standard motor starters are installed in a seawater-resistant Ex d enclosure and are suitable for a large temperature range. They are available in various control variants. As an option, the control panels can be fitted with main switches, main and control fuses and control devices as per the customer's requirements.
  • Highlights - Motor starters with international approval Robust design: seawater-resistant enclosure, can be used in a large temperature range Control panels: Direct-On-Line Motor Starter DOL, star-delta contactor combinations YD, reversing contactor combinations
  • Product Description - Direct-on-line motor starter (DOL)
  • Product Type - 8264/5-SM-ES45kW400V-T
  • Title Product Variant Technical Data - 8264/5-SM-ES45kW400V-T DOL motor-contr.
  • WebCode - 8264D

Mechanical Data

  • Cable entry - 1 x M50
  • Cable entry 2 - 1 x M40
  • Cable entry 3 - 2 x M25
  • Degree of protection (IP) - IP65
  • Enclosure - 8264/5222
  • Enclosure material - Aluminium, copper-free, Seawater-resistant
  • Height - 270.000 mm
  • Length - 360.000 mm
  • Terminals - 4 x 50 mm2
  • Terminals 2 - 3 x 35 mm2
  • Threaded holes on bottom - 1 x M50 1 x M40 2 x M25
  • Weight - 39.000 kg
  • Width - 360.000 mm
143177
143177
R. STAHL Direct-On-Line Motor Starter (DOL)
Motor starters with international approval

Robust design: seawater-resistant enclosure, can be used in a large temperature range

Control panels: Direct-On-Line Motor Starter DOL, star-delta contactor combinations YD, reversing contactor combinations

Ambient Conditions

  • Ambient temperature - -20 °C ... +40 °C
  • Ambient temperature max. - +40 °C
  • Ambient temperature min. - -20 °C

Components

  • Terminal - 4 x 50 mm2 3 x 35 mm2

Electrical Data

  • Rated operational voltage AC - 400.00 - 400.00 V

Explosion Protection

  • Ambient temperature °C - -20 - 40 °C
  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - KEMA 01 ATEX 2145 X
  • ATEX gas certificate - KEMA 01 ATEX 2145 X
  • Certificates - ATEX (DEK), Brazil (ULB), Canada / USA (UL), China (CQST), IECEx (DEK), India (PESO), Korea (KGS), Taiwan (ITRI)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T80 °C Db
  • Dust explosion protection IECEx - Ex tb IIIC T80 °C Db
  • Gas explosion protection ATEX - II 2 G Ex db IIB+H2 T6 Gb
  • Gas explosion protection IECEx - Ex db IIB+H2 T6 Gb
  • IECEX dust certificate - IECEx KEM 07.0051 X
  • IECEX gas certificate - IECEx KEM 07.0051X

General

  • Functional Description - R. STAHL Series 8264/5 CUBEx standard motor starters are installed in a seawater-resistant Ex d enclosure and are suitable for a large temperature range. They are available in various control variants. As an option, the control panels can be fitted with main switches, main and control fuses and control devices as per the customer's requirements.
  • Highlights - Motor starters with international approval Robust design: seawater-resistant enclosure, can be used in a large temperature range Control panels: Direct-On-Line Motor Starter DOL, star-delta contactor combinations YD, reversing contactor combinations
  • Product Description - Direct-on-line motor starter (DOL)
  • Product Type - 8264/5-SM-ES55kW400V-T
  • Title Product Variant Technical Data - 8264/5-SM-ES55kW400V-T DOL motor-contr.
  • WebCode - 8264D

Mechanical Data

  • Cable entry - 1 x M50
  • Cable entry 2 - 1 x M40
  • Cable entry 3 - 2 x M25
  • Degree of protection (IP) - IP65
  • Enclosure - 8264/5323
  • Enclosure material - Aluminium, copper-free, Seawater-resistant
  • Height - 340.000 mm
  • Length - 480.000 mm
  • Terminals - 4 x 50 mm2
  • Terminals 2 - 3 x 35 mm2
  • Threaded holes on bottom - 1 x M50 1 x M40 2 x M25
  • Weight - 69.000 kg
  • Width - 360.000 mm
143179
143179
R. STAHL Direct-On-Line Motor Starter (DOL)
Motor starters with international approval

Robust design: seawater-resistant enclosure, can be used in a large temperature range

Control panels: Direct-On-Line Motor Starter DOL, star-delta contactor combinations YD, reversing contactor combinations

Ambient Conditions

  • Ambient temperature - -20 °C ... +40 °C
  • Ambient temperature max. - +40 °C
  • Ambient temperature min. - -20 °C

Components

  • Terminal - 4 x 50 mm2 3 x 35 mm2

Electrical Data

  • Rated operational voltage AC - 400.00 - 400.00 V

Explosion Protection

  • Ambient temperature °C - -20 - 40 °C
  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - KEMA 01 ATEX 2145 X
  • ATEX gas certificate - KEMA 01 ATEX 2145 X
  • Certificates - ATEX (DEK), Brazil (ULB), Canada / USA (UL), China (CQST), IECEx (DEK), India (PESO), Korea (KGS), Taiwan (ITRI)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T80 °C Db
  • Dust explosion protection IECEx - Ex tb IIIC T80 °C Db
  • Gas explosion protection ATEX - II 2 G Ex db IIB+H2 T6 Gb
  • Gas explosion protection IECEx - Ex db IIB+H2 T6 Gb
  • IECEX dust certificate - IECEx KEM 07.0051 X
  • IECEX gas certificate - IECEx KEM 07.0051X

General

  • Functional Description - R. STAHL Series 8264/5 CUBEx standard motor starters are installed in a seawater-resistant Ex d enclosure and are suitable for a large temperature range. They are available in various control variants. As an option, the control panels can be fitted with main switches, main and control fuses and control devices as per the customer's requirements.
  • Highlights - Motor starters with international approval Robust design: seawater-resistant enclosure, can be used in a large temperature range Control panels: Direct-On-Line Motor Starter DOL, star-delta contactor combinations YD, reversing contactor combinations
  • Product Description - Direct-on-line motor starter (DOL)
  • Product Type - 8264/5-SM-ES75kW400V-T
  • Title Product Variant Technical Data - 8264/5-SM-ES75kW400V-T DOL motor-contr.
  • WebCode - 8264D

Mechanical Data

  • Cable entry - 1 x M50
  • Cable entry 2 - 1 x M40
  • Cable entry 3 - 2 x M25
  • Degree of protection (IP) - IP65
  • Enclosure - 8264/5323
  • Enclosure material - Aluminium, copper-free, Seawater-resistant
  • Height - 340.000 mm
  • Length - 480.000 mm
  • Terminals - 4 x 50 mm2
  • Terminals 2 - 3 x 35 mm2
  • Threaded holes on bottom - 1 x M50 1 x M40 2 x M25
  • Weight - 69.000 kg
  • Width - 360.000 mm
143182
143182
R. STAHL YD Star-Delta Contactor Combination
Motor starters with international approval

Robust design: seawater-resistant enclosure, can be used in a large temperature range

Control panels: Direct-On-Line Motor Starter DOL, star-delta contactor combinations YD, reversing contactor combinations

Ambient Conditions

  • Ambient temperature - -20 °C ... +40 °C
  • Ambient temperature max. - +40 °C
  • Ambient temperature min. - -20 °C

Components

  • Terminal - 4 x 6 mm2 6 x 4 mm2

Electrical Data

  • Rated operational voltage AC - 400.00 - 400.00 V

Explosion Protection

  • Ambient temperature °C - -20 - 40 °C
  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - KEMA 01 ATEX 2145 X
  • ATEX gas certificate - KEMA 01 ATEX 2145 X
  • Certificates - ATEX (DEK), Brazil (ULB), Canada / USA (UL), China (CQST), IECEx (DEK), India (PESO), Korea (KGS), Taiwan (ITRI)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T80 °C Db
  • Dust explosion protection IECEx - Ex tb IIIC T80 °C Db
  • Gas explosion protection ATEX - II 2 G Ex db IIB+H2 T6 Gb
  • Gas explosion protection IECEx - Ex db IIB+H2 T6 Gb
  • IECEX dust certificate - IECEx KEM 07.0051 X
  • IECEX gas certificate - IECEx KEM 07.0051X

General

  • Functional Description - R. STAHL Series 8264/5 CUBEx standard motor starters are installed in a seawater-resistant Ex d enclosure and are suitable for a large temperature range. They are available in various control variants. As an option, the control panels can be fitted with main switches, main and control fuses and control devices as per the customer's requirements.
  • Highlights - Motor starters with international approval Robust design: seawater-resistant enclosure, can be used in a large temperature range Control panels: Direct-On-Line Motor Starter DOL, star-delta contactor combinations YD, reversing contactor combinations
  • Product Description - YD star-delta contactor combination
  • Product Type - 8264/5-SM-SS11kW400V-T
  • Title Product Variant Technical Data - 8264/5-SM-SS11kW400V-T motor-sta.triang.
  • WebCode - 8264D

Mechanical Data

  • Cable entry - 3 x M32
  • Cable entry 2 - 2 x M25
  • Degree of protection (IP) - IP65
  • Enclosure - 8264/5222
  • Enclosure material - Aluminium, copper-free, Seawater-resistant
  • Height - 270.000 mm
  • Length - 360.000 mm
  • Terminals - 4 x 6 mm2
  • Terminals 2 - 6 x 4 mm2
  • Threaded holes on bottom - 3 x M32 2 x M25
  • Weight - 39.000 kg
  • Width - 360.000 mm
143184
143184
R. STAHL YD Star-Delta Contactor Combination
Motor starters with international approval

Robust design: seawater-resistant enclosure, can be used in a large temperature range

Control panels: Direct-On-Line Motor Starter DOL, star-delta contactor combinations YD, reversing contactor combinations

Ambient Conditions

  • Ambient temperature - -20 °C ... +40 °C
  • Ambient temperature max. - +40 °C
  • Ambient temperature min. - -20 °C

Components

  • Terminal - 4 x 6 mm2 6 x 4 mm2

Electrical Data

  • Rated operational voltage AC - 400.00 - 400.00 V

Explosion Protection

  • Ambient temperature °C - -20 - 40 °C
  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - KEMA 01 ATEX 2145 X
  • ATEX gas certificate - KEMA 01 ATEX 2145 X
  • Certificates - ATEX (DEK), Brazil (ULB), Canada / USA (UL), China (CQST), IECEx (DEK), India (PESO), Korea (KGS), Taiwan (ITRI)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T80 °C Db
  • Dust explosion protection IECEx - Ex tb IIIC T80 °C Db
  • Gas explosion protection ATEX - II 2 G Ex db IIB+H2 T6 Gb
  • Gas explosion protection IECEx - Ex db IIB+H2 T6 Gb
  • IECEX dust certificate - IECEx KEM 07.0051 X
  • IECEX gas certificate - IECEx KEM 07.0051X

General

  • Functional Description - R. STAHL Series 8264/5 CUBEx standard motor starters are installed in a seawater-resistant Ex d enclosure and are suitable for a large temperature range. They are available in various control variants. As an option, the control panels can be fitted with main switches, main and control fuses and control devices as per the customer's requirements.
  • Highlights - Motor starters with international approval Robust design: seawater-resistant enclosure, can be used in a large temperature range Control panels: Direct-On-Line Motor Starter DOL, star-delta contactor combinations YD, reversing contactor combinations
  • Product Description - YD star-delta contactor combination
  • Product Type - 8264/5-SM-SS15kW400V-T
  • Title Product Variant Technical Data - 8264/5-SM-SS15kW400V-T motor-sta.triang.
  • WebCode - 8264D

Mechanical Data

  • Cable entry - 3 x M32
  • Cable entry 2 - 2 x M25
  • Degree of protection (IP) - IP65
  • Enclosure - 8264/5222
  • Enclosure material - Aluminium, copper-free, Seawater-resistant
  • Height - 270.000 mm
  • Length - 360.000 mm
  • Terminals - 4 x 6 mm2
  • Terminals 2 - 6 x 4 mm2
  • Threaded holes on bottom - 3 x M32 2 x M25
  • Weight - 39.000 kg
  • Width - 360.000 mm
1 - 12 of 29 Part Numbers

Documentation

Data Sheets

Instantly populate your store or catalog
CREATE YOUR SITE
or book a demo with the Yodify Team
show more
