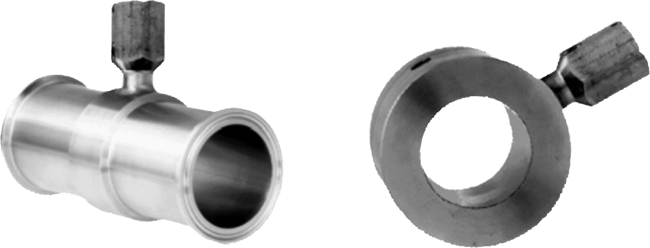

Clamp-On Seals of Flange Design Diaphragm Seal
Brand: Siemens AGThe inline seal is completely integrated in the process line.
It is particularly suitable for flowing and highly viscous media.
The inline remote seal consists of a cylindrical jacket into which a thin-walled pipe is welded.
It is clamped directly between two flanges in the pipeline.
Specifications
Brand
Connecting Standard EN 1092-1
- DN 25/40/50/65/80/100/125
- PN 6 ... PN 100
Connecting Standard ASME B16.5
- 1 inch
- 1-1/2 inch
- 2 inch
- 2-1/2 inch
- 3 inch
- 4 inch
- 5 inch
- Class 150 to Class 2500
Process Connection
- Flange to EN 1092-1
- ASME B 16.5
Sealing Face
- For stainless steel mat. no. 1.4404/316L according to EN 1092-1, form B1 or ASME B16.5 RF 125 ... 250 AA
- For all other materials according to EN 1092-1, form B2 or ASME B16.5 RFSF
Main Body Material
- Stainless Steel 1.4404/316L
Diaphragm Material
- Stainless Steel 1.4404/316L
Wetted Parts Material
- Stainless Steel, 1.4404/316L without coating
- Stainless Steel, 1.4404/316L ECTFE coating for vacuum on request
- Stainless Steel, 1.4404/316L PFA coating
- Monel 400, mat. no. 2.4360
- Hastelloy C-276, mat. no. 2.4819
- Hastelloy C-4, mat. no. 2.4602
- Tantalum
Capillary Material
- Stainless Steel, mat. no. 1.4571/316Ti
Sheath Material
- Spiral protective tube made of stainless steel, mat. no. 1.4301/316
Capillary Length
- Maximum 10 m
- 32.8 ft
Capillary Internal Diameter
- 2 mm
- 0.079 inch
Capillary Minimum Bending Radius
- 150 mm
- 5.9 inch
Filling Liquid
- Silicone Oil M5
- Silicone Oil M50
- High-Temperature Oil
- Halocarbon Oil
- Food Oil FDA Listed
Weight
- Approx. 4 kg
- 8.82 lb
Certificates & Approvals
- Classification according to pressure equipment directive
- DGRL 2014/68/EU
