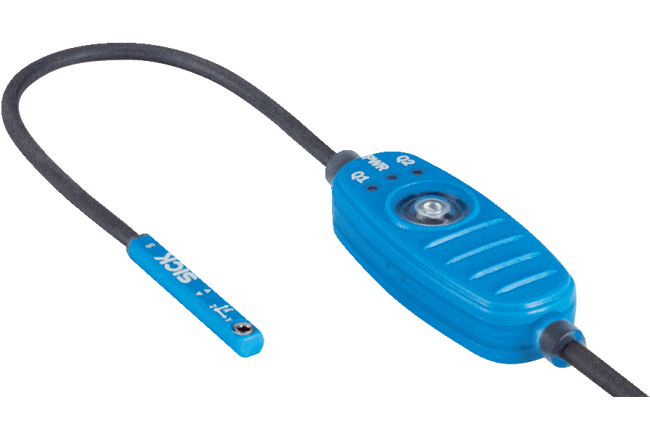

MPS-G Position Sensor

Brand: Sick AG

MPS-G position sensors continuously detect the position of the fingers of pneumatic grippers and the piston position of miniature cylinders using a direct, non-contact method. The magnetic distance measuring system with the compact design enables extremely precise position determination. The sensor supports countless wiring and control concepts.

SICK offers two product variants for this purpose: Sensors with analog voltage output and IO-Link sensors with Smart Sensor profile and two adjustable digital switching outputs – the right solution for nearly any requirement.

Via IO-Link, the MPS-G also delivers comprehensive diagnostic data including performance data from pneumatic drives or data on condition monitoring of systems.

At a glance

Position feedback with a measuring range of up to 50 mm
Programming of up to 3 digital switching signals
16 switching points via IO-Link
Adjustment of digital switching outputs via dynamic teach-in
Diagnostic data of grippers and cylinders
Data on machine temperature and vibration
Detection of sensor head orientation

Features

Definition of two, three or more switching points to differentiate between gripper positions and several objects
Simple measurement of components with absolute position value
Reproducible detection of very small object tolerances
Completely protected due to flush installation of the sensor head
Optimizes costs in orientation detection of objects and vibration monitoring in sensitive manufacturing process as additional sensors are not needed
Optimizes processes and predictive maintenance of pneumatic systems by monitoring the drive performance
Simplifies temperature monitoring in systems due to integrated temperature sensor

1 - 11 of 11 Part Numbers

per page:

1108672

Output Fuction - Analog
Measuring Range - 50 mm
Connection Type - Cable with Connector M8, with Knurled Nuts, 0.5 m
Type - MPS-G50CFH15D43ZZZ

1108673

Output Fuction - Analog
Measuring Range - 50 mm
Connection Type - Cable with Connector M8, with Knurled Nuts, 0.5 m
Type - MPS-G50CSH15D43ZZZ

1108674

Output Fuction - Analog
Measuring Range - 50 mm
Connection Type - Cable with Connector M8, with Knurled Nuts, 0.5 m
Type - MPS-G50CSH55D43ZZZ

1108675

Output Fuction - IO-Link
Measuring Range - 50 mm
Connection Type - Cable with Connector M8, with Knurled Nuts, 0.5 m
Type - MPS-G50CFH15D31DZZ

1108676

Output Fuction - IO-Link
Measuring Range - 50 mm
Connection Type - Cable with Connector M8, with Knurled Nuts, 0.5 m
Type - MPS-G50CSH15D31DZZ

1108677

Output Fuction - IO-Link
Measuring Range - 50 mm
Connection Type - Cable with Connector M8, with Knurled Nuts, 0.5 m
Type - MPS-G50CSH55D31DZZ

1108678

Output Fuction - IO-Link
Measuring Range - 50 mm
Connection Type - Cable with Connector M12, with Knurled Nuts, 0.3 m
Type - MPS-G50CFH13E31DZZ

1108679

Output Fuction - IO-Link
Measuring Range - 50 mm
Connection Type - Cable with Connector M12, with Knurled Nuts, 0.3 m
Type - MPS-G50CSH13E31DZZ

1108680

Output Fuction - IO-Link
Measuring Range - 50 mm
Connection Type - Cable with Connector M12, with Knurled Nuts, 0.3 m
Type - MPS-G50CSH53E31DZZ

1108681

Output Fuction - IO-Link
Measuring Range - 50 mm
Connection Type - Cable with Connector M8, with Knurled Nuts, 0.5 m
Type - MPS-G50CFH15D31DZZ

1108682

Output Fuction - IO-Link
Measuring Range - 50 mm
Connection Type - Cable with Connector M8, with Knurled Nuts, 0.5 m
Type - MPS-G50CSH15D31DZZ

1 - 11 of 11 Part Numbers
