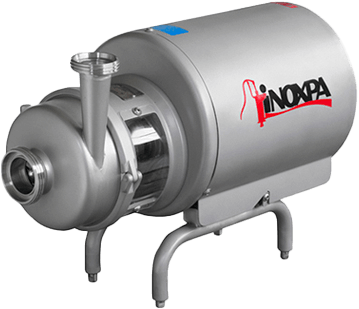

PROLAC HCP Hygienic Centrifugal Pump

Brand: Inoxpa

PROLAC HCP is a range of close-coupled centrifugal pumps with hygienic design, compact and highly efficient. It is made of a cold-formed stainless steel casing, impeller, mechanical seal, pump cover, lantern and shaft, connected to the motor shaft by mechanical compression.

The motor complies with the IEC standards, it is protected with a stainless steel shroud and provided with the height adjustable hygienic designed legs.

The pump is EHEDG certified, it is especially designed for CIP/SIP without disassembly.

The PROLAC HCP centrifugal pump is provided with an internal single mechanical seal. The seal is balanced and has a hygienic design.

As standard, the stationary part is in carbon and the rotary part is in silicon carbide, the gaskets are in EPDM. However, when required, other material can be used.

There is also an option of assembly of a double mechanical seal made of two identical seals.

It helps to upgrade a pump with single seal to double seal and simplifies the management of necessary spare parts as the seal is the same.

Specifications

Brand

Surface Finish External

  • Matt

Surface Finish Internal

  • Bright polish Ra< 0,8 μm

Connections

  • DIN 11851
  • Aseptic flange DIN 11864
  • CLAMP
  • SMS

Nominal Pressure

  • 1600 kPa (16 bar)
  • 232 psi

Temperature Range

  • -10° C to +120° C
  • +140° C (SIP, Max. 30 min.)
  • 14° F to 248° F
  • 284° F

Maximum Flow

  • 220 m³/h
  • 968 US GPM

Maximum Differential Head

  • 140 m
  • 459 ft

Maximum Speed

  • 3600 rpm
