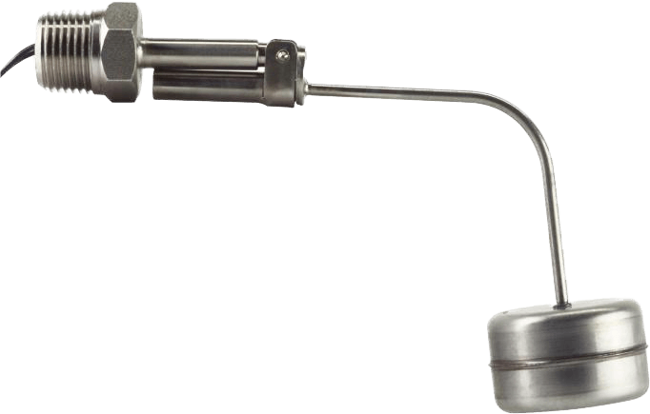

Side Kick Float Switch, Stainless Steel, 1/2" NPT, Normally Closed
Brand: Madison Company, IncContainer overfill or container empty can cost OEMs time, money and aggravation during certain processes.
When containers are closed or inaccessible, OEMs rely on point level measurement sensors, combined with remote alarms and/or pump controls, to maintain high/low levels.
Well-known point level switch technologies from Madison Company are available such as optical sensors, conductivity sensors, or float switches with reed switch technology, among others.
Madison point level float switches use reed switch technology that is simple, reliable, and durable.
They operate in an on/off state, and are used to control an external device such as an alarm or an on/off switch.
Because OEMs need sensors for tanks that vary in width and height, certain point level float switches are offered with field-adjustable stem lengths.
This provides an OEM with the advantage of using only one or two sensors for their application instead of several.
Features- Proven, reliable technology
- Various material combinations and mounting options for any application
- NPT vertical switches can be extended with pipe to meet custom tank depths
- In stock, or customizable
- Dependable, durable and efficient
Specifications
Brand
Electrical Ratings
- 240 Vac, 0.14A, 120 Vac, 0.28A, 120 Vdc, 0.07A, 24 Vdc, 0.28A
Float Diameter
- 1.54” O.D.
Stem Material
- 316 Stainless Steel
Float Material
- 316 Stainless Steel
Float SG
- 0.60
Lead Wires
- 24”, 22 AWG, Teflon Insulated
Maximum Pressure
- 50 psi
Maximum Temperature
- 392° F (200° C)
Mounting
- 1/2” NPT
Switch Rating
- 30 Watt, SPST
