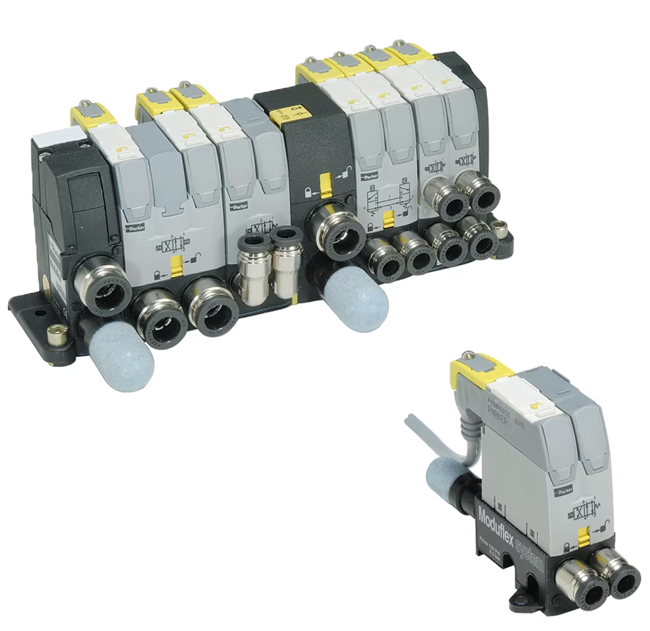

Pneumatic Solenoid Valve - Moduflex Series
Brand: Parker - Fluid Control DivisionThe Moduflex series valve is an internal/external air piloted stacking style valve.
Available as electric with configurable manual override or Pneumatic Remote pilot.
Available valve functions are:
- Single or Dual 3/2, N.C. (with or without exhaust check valve), N.O. or Dual N.C. / N.O.
- Single or Dual 4/2 single solenoid
- 4/2 double solenoids
- 4/3 Closed, Pressurized or exhaust center
There are three mounting configurations available - S series (Stand alone), T series (Manifold w/ traditional wiring per solenoid), and V series (Manifold w/ Valvetronic backplane circuit board for collective wiring).
Both S and T series are available with electric pilot and IP40 or IP67 rated or with a pneumatic remote pilot.
The electric V series IP65 rated has head module options - 20 and 25 pin D-sub connections, and industrial communication options IOLink, Ethernet/IP, Profinet IO, EtherCAT, PowerLink, Modbus /TCP or CC-Link IE.
The Moduflex valve manifold can be field converted from internal to external pilot supply by removing the cover on the left hand end plate and rotating the "X" channel selector 180 degrees so the 4 mm tube connection can be used for external pilot supply pressure.
The cover can then be reinstalled. Internal pilot operation means that supply pressure on the #1 port is directed to the end of the valve where the solenoid operator, when actuated, allows the supply pressure to pass which is then applied to the piston to shift the spool.
External pilot is when the valve gets its "internal" pressure from an "external pilot port" instead of the #1 port.
Moduflex P2M Industrial Network Nodes can also be used with H ISO and H Micro valve manifolds Series.
Features- Modular
- Flexible
- Size mixing
- Multiple pneumatic zoning
- Pneumatic remote pilot
- IP40 or IP67 traditional wiring
- IP65 multi-wiring
- Industrial communication connectivity
Specifications
Overide Functionality
- N/A
Valve Type
- Dual 3-Way, 4-Way
Maximum Manifold Outlets
- 19 (20 & 25-Pin) / 16 (Fieldbus)
Pressure Range
- Vacuum to 120 psig
Input Supply Voltage
- 24 Vdc
Actuation
- Solenoid Air Operated
Mounting Standard
- N/A
Temperature Range
- 0°C to +54°C (+32°F to +130°F)
Power Consumption
- 1 W
Body Material
- Nickel-Plated Brass
Number of Positions
- 2
Port Size
- 4 mm O.D., ½” O.D.
Number of Ports
- 4
Port Type
- Tube Push-In Connections
Fieldbus Protocol
- DeviceNet / PROFIBUS-DP / AS-I / CANopen / Interbus-S / IO-Link
Approvals & Certifications
- CE, IP65 (V), IP67 (S & T)
Nominal Flow (Qn-L/min)
- N/A
Minimum Flow
- 0.18 Cᵥ
Mounting Style
- Manifold, Subbase
Maximum Flow
- 0.8 Cᵥ
Maximum Flow (Q Maximum - L/min)
- N/A
Lubricant
- Not Required
Media
- Inert Gases
Minimum Operating Pressure
- 43 psig
Electrical Connectors
- 20-Pin Multi-Connector, 25-Pin D-sub
Seal Material
- Buna-N
- General Pneumatic Control
- Robotics / Dynamic Applications
Documentation
Data Sheets
- 0600 B92 Moduflex IO Link pdf 3.3 MB
- Moduflex Complete Modules Doc V 682P ECN030648 Rev 1 pdf 82 KB
- Moduflex Miniature Pneumatic Valve System Index of Technical Service Documents pdf 32 KB
- Moduflex Peripherals V680P DOC V680P EN070360 Rev 3 pdf 162 KB
- Moduflex Valve Service Peripherals Complete Modules pdf 370 KB
- Moduflex Valve System W91510388011 pdf 600 KB
- Moduflex Valve W915102510111 pdf 164 KB
- P2M2HBVC21600 CANopen Communication Module pdf 265 KB
- Technical Data Stacking Valves 0600P E Section C pdf 9.4 MB
Instructions
Specifications
- Moduflex Bus Modules Specification ASI P2M2HBVD11600 pdf 619 KB
- Moduflex Bus Modules Specifications CANopen P2M2HBVD11600 pdf 265 KB
- Moduflex Bus Modules Specifications DeviceNet P2M2HBVD11600 pdf 617 KB
- Moduflex Bus Modules Specifications Interbus S P2M2HBVS11600 pdf 612 KB
- Moduflex Bus Modules Specifications Profibus DP P2M2HBVS11600 pdf 616 KB
