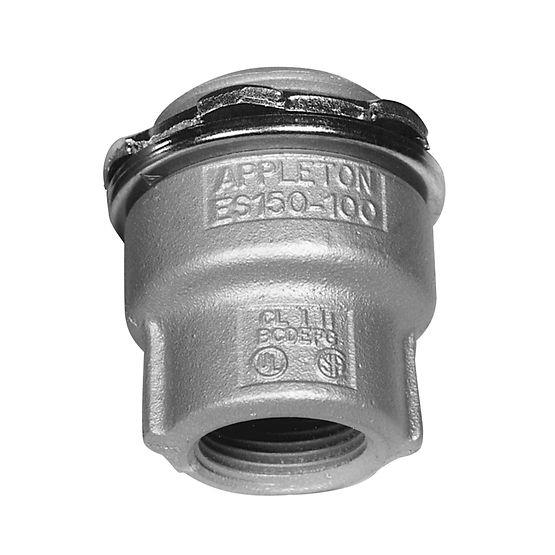

Appleton™ ES 25% Sealing Hubs
Brand: AppletonAppleton™ ES 25% fill explosionproof and dust-ignitionproof sealing hubs are used to seal vertical conduit risers at switch gear and motor control centers, sheet metal structures, or cast boxes and enclosures.
They can be used as a male thread enlarger or conduit hub in an ordinary location.
Features- Explosionproof, dust-ignitionproof
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and ground continuity
- Allows up to 25% conduit fill in compliance with the National Electrical Code
- UL Listed for use with Kwiko™ A Sealing Compound. Also listed with certain competitors sealing cement, contact factory for details
Specifications
Brand
NEC/CEC Certifications & Compliances
- UL Standard: 886 (1203)
- UL Listed: E34997
- CSA Certified: 065181
- CSA Standard: C22.2
Standard Finish
- Triple-Coat Finish (1) Zinc Electroplate, (2) Chromate, & (3) Epoxy Powder Coat
Standard Material
- Malleable Iron
