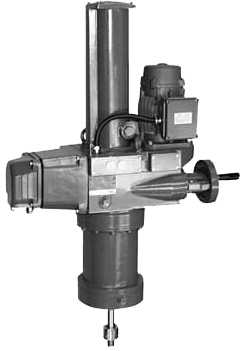

RSD10 / RSD20 Electrical Linear Actuator

Brand: ABB Group
Add Product to My Catalog

Compact actuator for the operation of final control elements with preferably linear movement.

For continuous positioning, rated force 10 kN (2250 lbf).

The actuator thrust rod transfers the force directly to the final control element.
Features
  • Electrical actuator for continuous positioning or step control
  • Stallproof without the need of position or torque dependent switch-off
  • Three-phase asynchronous motor
  • Sturdy gear unit with highly efficient design
  • Internal rotary - linear conversion
  • Hand wheel for emergency operation
  • Integrated sensors for position and temperature
  • Signal and power input only via separate, microprocessor-controlled electronic unit

View_Details

Specifications

Brand

Rated Speed

  • RSD10-5: 0.1 to 5.0 mm/s
  • RSD10-10: 0.1 to 10.0 mm/s

Stroke Range

  • Minimum 0 to 15 mm, Max. 0 to 300 mm

Operating Mode

  • S9, Stall-proof as per IEC 60034-1 / EN 60034-1

Environmental Protection

  • IP66

Humidity

  • ≤ 95 % Annual Average, No Condensation

Ambient Temperature

  • -30° to 85° C (-22° to 185° F)

Storage / Transport Temperature

  • -40° to 70° C (-40° to 160° F)
  • Long-term Storage: -30° to 40° C (-22° to 104° F)

Mounting Position

  • IMV1, IMV3, IMB5, preferably IMV1 acc. to IEC 60034-7 / EN 60034-7

Coating

  • 2-Layer Component Epoxy (RAL 9005, Black)

Force

  • Rated: 10/20 kN (2,200/4,400 lbf) (Adjustable to 0.5 / 0.75 or 1 x rated force)
  • Starting: 1.2 x rated force (Break-Away torque in end positions for short time 2 x rated force)

Supply Voltage

  • 115 Vac (94-130 V) or 230 Vac (190-260 V), 47.5 to 63 Hz, single-Phase

Current Consumption

  • 2.2, 3.6, 4.8 A at 115 V
  • 1.1, 1.8, 2.4 A at 230 V

Communication

  • Conventional Communication
  • PROFIBUS DP

Documentation

Brochure

Catalog

Certificate

Manual
