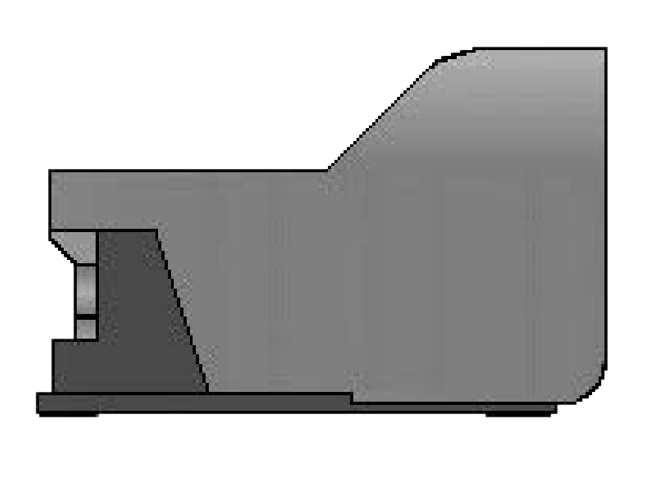

5/2-Way Valve 1/4" Foot Pedal

Brand: Parker ORIGA Corporation
Add Product to My Catalog

Delivery Includes:
  • valve
  • toe guard

1 - 2 of 2 Part Numbers
KZ 4412
KZ 4412
PARKER ORIGA Pedal Detent
Type Number: F531-08
KZ 4413
KZ 4413
PARKER ORIGA Pedal Spring Return
Type Number F531RF-08
1 - 2 of 2 Part Numbers

Specifications

Brand

System

  • Poppet Valve

Mounting

  • After removing the Rubber footing 4 Screws M8

Tube Connection

  • Thread

Port Size

  • G1/4

Weight (Lbs (kg))

  • 3.08 (1.5)

Installation

  • In any position

Ambient Temperature

  • 14° to 131° F (-10° to 55° C)

Medium Temperature

  • 14° to 140° F (-10° to 60° C)

Medium

  • Filtered compressed Air

Lubrication

  • Oil Mist Lubrication Compatible with Buna-N

Nominal Pressure (psi (bar))

  • 87 (6)

Operating Pressure Range (psi (bar))

  • P min 0 (0)
  • P max 145 (10)

Nominal Flow (Cv (I/min))

  • 1.4 (1400)

Manual Control

  • Direct

Stroke

  • 2 mm

Actuating Force (lbf (N)

  • 6.74 (30)

Documentation

Data Sheets
