Bearing Assemblies - LVA Steel Series

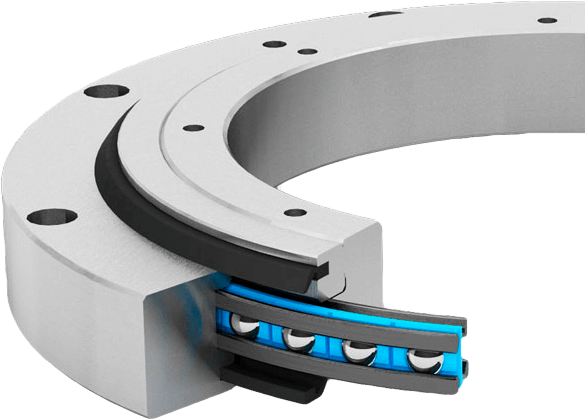

Brand: Franke GmbHFranke Bearing Assemblies Type LVA are ready-to-install bearing assemblies with steel housing rings and integrated bearing element.
They are suitable for medium rotational speeds and accuracies. They are available at short notice, some of them even from stock.
Designed as 4 point bearings, they can support equally high loads from all directions and are insensitive to shocks and vibrations.
Type LVA bearing assemblies are sealed on both sides and adjusted with preload.
FeaturesBearing Type
- Bearing assembly in steel design
Characteristics
- Ready to install, wide selection range
- Preloaded free from clearance
- Selected diameters available ex works
Diameter Range
- From 100 - 1800 mm
Specifications
Brand
Material
- Inner/Outer Ring: C45N
- Ball Race Rings: 54SiCr6
- Rolling Elements: 100Cr6
- Seal: NBR
Temperature in Use
- -20° to +80° C, Briefly up to +100° C
Circumferential Speed
- Maximum 5 m/s, without Seals Maximum 10 m/s
Screw Connection
- See Technical Information
Lubricant Grease
- Shell Gadus S3 V220C2
Re - Lubrication
- Using Grease Nipples According to DIN 3405
Lubrication Schedule
- See Technical Information
