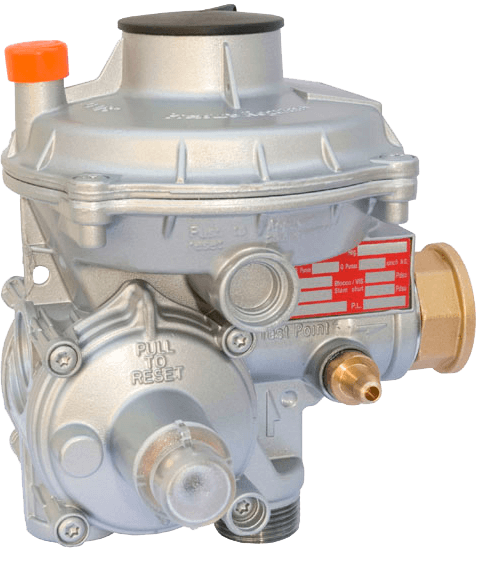

Mod. GR6 Pressure Regulator
Brand: Pietro Fiorentini S.p.A.The GR6 series two-stage self-driven spring loaded regulators are widely used in both civil and industrial installations using natural gas, LPG and other non-corrosive gases.
They are designed either to be fitted directly to a gas meter or used in general pipeline work. They can be mounted in any position provided they are protected from the weather.
A balanced two-stage regulator results in accurate regulation and high operational reliability with the possibility to use the same equipment to meet what the market currently requires (low pressure) and future needs (medium pressure) just changing the setpoint, to satisfy additional gas consumption with the same infrastructure, which means safety devices must be adequate.
Where the installation is in an enclosed space , the internal relief vent can be piped to outside. Simple to install.
These regulators are manufactured according to UNE 60402-2 and approved for the Nof AENOR.
Features- Inlet pressure range Bpu: 150-400 mbar Pu max : 5bar efficiency.
- Outlet pressure range Pd: 20 mbar
- OPSO range: MAX 110 mbar +/-10%
- UPSO range: 12.5 mbar +/-2.5%
- Residual Q: 12.5 l/h +/- 3.5 l with Pu 200 mbar
- Nominal flow rate: 4.8 mc/h air (6 Nm3/h NG)
- Max outlet pressure during reset: 50 mbar
- Accuracy class: AC10
- Lock up pressure class: SG 25
- Exercise temperature: (environment - 25° + 60° C) ; (Gas –5°+40°)
Specifications
Brand
Accuracy Class
- AC 10
Closing Pressure Class SG
- SG25
Design Temperature
- environment: -25° - 60° C
- gas: -5° - 40° C
Range of Inlet Pressure Bpu
- 150-400 mbar
