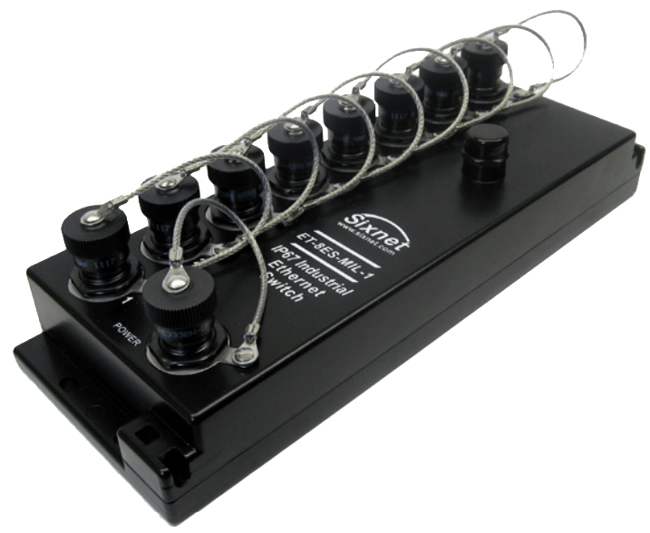

ET-8xS-MIL Industrial Ethernet Switch
Brand: Red Lion ControlsSixnet’s ET-8xS-MIL-1 is a fast (10/100) managed or unmanaged industrial Ethernet switch with military-style D38999 connectors.
These high-performance switches offer an ideal commercial off-the shelf (COTS) military solution for battlefield communications, combat vehicles and avionics shipboard as well as other industrial applications that require rugged reliability in extreme environments.
Features- Ultra Rugged & Compact
- Meets extreme military standards
- Provides proven reliability under field conditions
- Fully certified MIL-STD performance
- -40° to 75° C (-40° to 167° F) operating temperature
- Tough corrosion proof aluminum case
- Conductive cooling-moving parts
- Over 1,000,000 (MTBF) of trouble-free service
- Industrial COTS Solution
- Reduces time and cost for development and maintenance
- Simplifies procurement
- Pre-tested for vibration and harsh conditions
- Ready to ship
- Flexible Deployment Options
- Reduces crew workload
- Improves task performance
- Direct-mounting — no need for additional enclosures and wiring
- IP67 (NEMA 6) water-tight case enables mounting into a vehicle or an exposed wall in harsh applications
- Low-profile chassis fits into tight spaces
- Real-Time Ethernet Performance
- Helps optimize vehicle networks
- Protects mission critical communications
- Fast wire-speed switching
- Auto-speed/duplex, auto-crossover and auto-polarity
- RSTP, SNMP, QoS/CoS, IGNR, VLAN and security options
1 - 12 of 403 Part Numbers
ET-8ES-MIL-1
- Product - 8-Port Unmanaged IP67 Switch
ET-8MS-MIL-1
- Product - 8-Port Managed IP67 Switch
ET-CAT6M-100CD
- Product - 100 Cordset, Military-Style Plug to RJ 45, x = metres
ET-CAT6M-101CD
- Product - 101 Cordset, Military-Style Plug to RJ 45, x = metres
ET-CAT6M-102CD
- Product - 102 Cordset, Military-Style Plug to RJ 45, x = metres
ET-CAT6M-103CD
- Product - 103 Cordset, Military-Style Plug to RJ 45, x = metres
ET-CAT6M-104CD
- Product - 104 Cordset, Military-Style Plug to RJ 45, x = metres
ET-CAT6M-105CD
- Product - 105 Cordset, Military-Style Plug to RJ 45, x = metres
ET-CAT6M-106CD
- Product - 106 Cordset, Military-Style Plug to RJ 45, x = metres
ET-CAT6M-107CD
- Product - 107 Cordset, Military-Style Plug to RJ 45, x = metres
ET-CAT6M-108CD
- Product - 108 Cordset, Military-Style Plug to RJ 45, x = metres
ET-CAT6M-109CD
- Product - 109 Cordset, Military-Style Plug to RJ 45, x = metres
1 - 12 of 403 Part Numbers
Specifications
Brand
Applications
- Aerospace
- Industrial Outdoors
- Marine & Maritime
- Military In-Vehicle
- Transportation
Approvals & Certifications
- CSA C22.2/14, 213
- EMC
- EMI
- IEEE 802.3, 802.3 u, 802.3x
- RoHS
- UL 508, 1604
Approvals & Certifications
- MIL-STD-810F, 1257B, HNDBK-217F2, STD-38999, 461E (EMC)
Circuit Protection
- Reverse Polarity Protection
- Surge Protection: 100 V for 1 second
Communication
- RS-232 Plug: D38999 / 26xA35PA
- USB
Enclosure, Body Material
- Tough Corrosion Proof Aluminum Case
Environmental Protection
- IP67
- NEMA 6
Humidity
- 5 to 95 % Relative Humidity, Non-Condensing
Indication
- LED
Input
- 10-30 Vdc (Continuous)
- 6 W (Estimated, Max.
Isolation
- Ethernet Isolation: 1,500 Vrms 1 Minute
Operating Temperature
- -40° to 75° C (-40° to 167° F)
Power
- 250 V (50x for 100 μS)
- Spike Protection: 5,000 W (10 x for 10 μS)
- Transient Protection: 15,000 W
Shock
- IEC 60068-2-27, 60068-2-27-32 (Freefall)
Storage Temperature
- -40° to 85° C (-40° to 185° F)
Vibration
- IEC 60068-2-6
