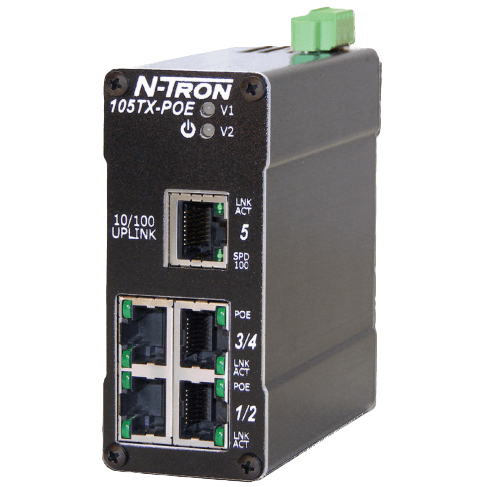

105TX-POE Industrial Ethernet Switch
Brand: Red Lion ControlsThe N-Tron 105TX-POE Unmanaged Industrial Ethernet Switch is designed to transmit power, along with data, over an Ethernet network and is ideal for PoE capable devices where running an AC power feed is either not possible or cost effective.
This feature allows an end user to power a PoE camera, wireless access point, or any other PoE capable device without the need for running separate wires for power.
This also allows the ability for a centralized battery backup for all these devices.
Features- Compact, space saving package
- Full IEEE 802.3 and 802.3af compliance
- American Bureau of Shipping (ABS) type approval
- Certified for rail applications
- Five 10/100BaseTXRJ-45 Ports(4 Mode A PoE Ports)
- Unmanaged operation
- Extended environmental specifications
- -40º to 85º C (-40° to 185° F) operating temperature
- Automatic detection of connected PoE devices
- Support for Full/Half Duplex operation
- Auto-sensing duplex, speed, and MDIX
- Up to 1.0 Gb/s maximum throughput
- Full wire speed communications
- Supports 15.4 Watts per port (13 Watts at the PD)
- Redundant power inputs (46-49 Vdc)
- Power fault status LED's
- LED link/activity status indication
- LED PoE status indication
- Hardened metal DIN-Rail enclosure
Specifications
Brand
Applications
- Alternative Energy
- Factory Automation
- SCADA Systems
- Security Surveillance
- Transportation
- Utilities
Approvals & Certifications
- ABS for Shipboard Applications
- CE
- DNV
- FCC Title 47 Part 15 Class A ICES-003 - Class A
- GOST-R
- IEC 61000-4-2, 3, 4, 5, 6
- IEEE 1613 for Electric Utility Substations, 802.3, 802.3 u, 802.3ab, 802.3x, 802.3af/at, 802.1d/D/w, 802.1p, 802.1Q, 802.1x
- RoHS
- UL (C,US) 508 Class I, Div. 2, Grade A, B, C, D,T4, C22.2 No. 14-M05, C22.2 No. 213- M1987 Class I, Div. 2, Hazardous Location
Approvals & Certifications
- EN 61000-6-2,4, 61000-4-2,3,4,5,6, 55011, 50155, 50121, 61373 (Railway Applications)
Circuit Protection
- ESD Protection
- Surge Protection
Current
- 26 A at 48 V, 1.3 milliseconds
Electrical Connectors
- Four (4) RJ45 TX/PoE Copper Ports (10/100Base-TX+PoE), One (1) RJ45 TX Copper Port (10/100Base-TX)
Environmental Protection
- NEMA TS1
- NEMA TS2
Humidity
- 10 to 95 % Relative Humidity, Non-Condensing
Indication
- LED
Input
- 1.6 A at 48 V (Under Full Load)
- 46-49 Vdc
- 65 mA at 48 V (Switch Full Load)
Mounting
- DIN Rail Mounting
Operating Temperature
- -40° to 85° C (-40° to 185° F)
Power
- 15.4 W
Storage Temperature
- -40° to 85° C (-40° to 185° F)
Wiring
- Wiring Clearance Front: 2” (5.08 cm)
- Wiring Clearance Top: 1” (2.54 cm)
