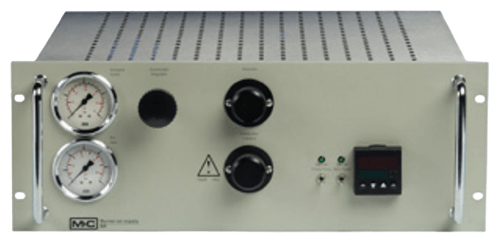

BA/BA-P4 Air Clean Up Supply
Brand: M&C TechGroup Germany GmbHWhen measuring hydrocarbons with a FID, hydrocarbon free burner air is necessary.
The M&C-burner air BA conditioning has been developed in order to achieve proper burner air supply, independent of gas cylinders.
The BA unit can also be used as a zero gas generator when calibrating I.R.-analyzers for emission monitoring.
Features- High degree of purity: CₙHₘ <10ppb, H₂O dew point <-10°C (14°F)
- Easy filter and adsorber change at the front without tools
- Long service life
- Status self-monitoring
- Compact, easy-to-use and easy-to-service 19" plug-in housing
Specifications
Ambient Temperature Range
- 5° to 40° C (41° to 104° F)
Approvals & Certifications
- Electrical Equipment Standard: EN 61010
BSP Connection
- Condensate Connection: G 1/8”i DIN ISO 228/1
- Inlet Gas Connection: Compressed Air in G 1/4”i
Electrical Connectors
- D-Sub 9-Pin Connector for Status Contact
- Plug with 2 metres Cable for Power In
Electrical Rating
- Status Signal Contact for Pressure & Temperature: 1 Changeover Contact - Potential Free, Contact Rating 1 A at 24 V
Environmental Protection
- IP20 EN 60529
Flow Rate
- Burner Air Flow: Max.
Humidity
- < 75 % Relative Humidity, Avoid Condensation
Output Pressure
- Outlet Pressure: psi: 0 to 58.02 (kPa: 0 to 400, bar: 0 to 4) Adjustable
Power Supply
- 230 V 50 Hz, 480 VA (BA), 560 VA (BA-P4)
Storage Temperature
- -25° to 65° C (-13° to 149° F)
Supply Pressure
- Inlet Pressure: Compressed Air psi: 58.02 to 54.12 (kPa: 400 to 580, bar: 4 to 5.8)
Update Time
- Start Up Time: Approximately 45 minutes
