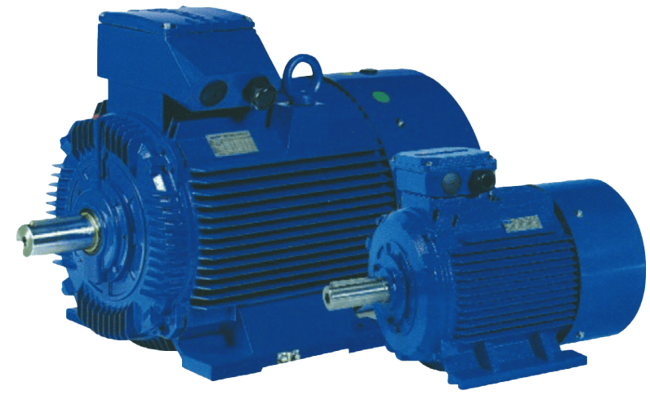

Standard Efficiency Induction Cast Iron Motors

Brand: RMG Group

WES series motor is three phase standard efficiency induction cast iron motor.

It's the new replacement of WY series and its efficiency indicators are in compliance with IE1.

Compared with WY series, WES series motor boasts the advantages of high efficiency and high starting torque, with lower noise, optimized structure and artistic outline.

The rated output and the mounting dimensions are fully conformed to the standard IEC and DIN 42673 (the same as WY series), WES series motors are suitable for driving various machines or equipment's without special requirements.
Features
  • IP55 protection, Class F Insulation, B Temperature rise, S1 duty
  • Rated voltage 380V, 400V, 415V, 440V, 460V and 480V
  • Rated frequency 50Hz and 60Hz
  • Operation conditions: ambient temperature: -20°C ~ 40°C, altitude ≤ 1000m
  • Y-connection for motors up to 3KW
  • Δ-connection for motors of 4KW and above
  • Cooling method is IC411

Specifications

Brand

Poles

  • 2
  • 4
  • 6
  • 8

Rated Power Range

  • .37 to 560 KW

  • Widely applied in general machinery and industries such as pumps & water treatment, road machinery, petroleum, chemical, metallurgy, cement and paper-milling.
