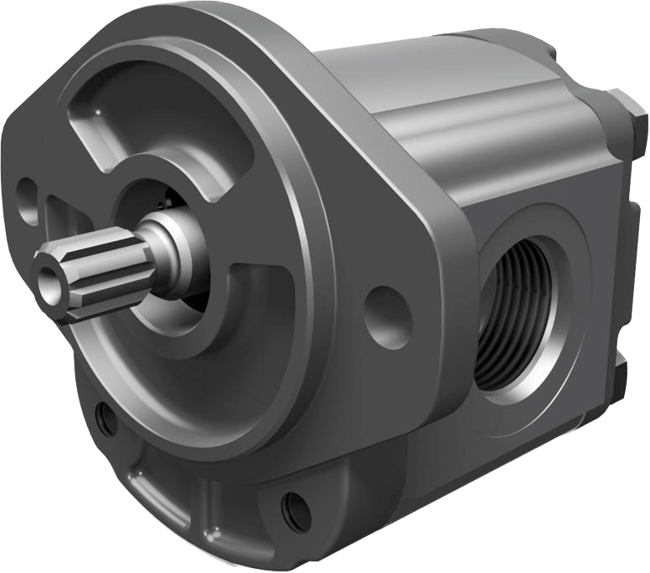

Aluminum Pumps - PGP511 Series

Brand: Parker Hannifin
Add Product to My Catalog

Parker’s Aluminum Pump PGP511 Series fixed displacement gear pump offers high performance and high power density due to its aluminum construction.

Parker’s 511 series fixed displacement gear pumps offer cost effective, high power density due to their aluminum, bushing block construction, making them ideal in a broad selection of markets such as Material Handling, Agriculture, Turf, as well as a variety of Industrial Applications.

 They are available as single or multi-section pumps.
Features
  • Three-piece construction for distribution flexibility
  • Aluminum pumping sections for light weight
  • Journal bushings for long life
  • Pressure balanced thrust blocks for high efficiency
  • Multiple sections available

Specifications

Brand

Body Material

  • Aluminum

Case Drain Option

  • No

Charge Pump Option

  • No

Circuit Type

  • Open

Configuration

  • Single / Tandem / Multiple

Control Method

  • Relief, Load Sense, Priority, Unloader

Energy Recovery Capable

  • No

Filtration Option

  • No

Fluid Type

  • Standard Hydraulic Fluid / Phosphate Ester / Water Glycol

Maximum Displacement (cm3/rev)

  • 33

Maximum Displacement (inch3/rev)

  • 2

Maximum Flow (gpm)

  • N/A

Maximum Flow (Lpm)

  • N/A

Maximum Fluid Temperature (°C)

  • 80° C

Maximum Fluid Temperature (°F)

  • 176° F

Maximum Noise Level (dBA)

  • N/A

Maximum Operating Pressure (bar)

  • 250

Maximum Operating Pressure (psi)

  • 3625

Maximum Radial Shaft Load (kg)

  • Consult Parker

Maximum Radial Shaft Load (Lbs)

  • Consult Parker

Maximum Speed (rpm)

  • 4000

Maximum Viscosity (SUS)

  • 7500

Maximum Weight (kg)

  • 4.6

Maximum Weight (Lbs)

  • 10.1

Media

  • N/A

Minimum Fluid Temperature (°C)

  • -15° C

Minimum Fluid Temperature (°F)

  • 5° F

Minimum Viscosity (SUS)

  • 50

Mounting Option

  • SAE, ISO , DIN

Port Connection

  • SAE, ISO , NPT, BSPP, ODT

Port Connection Type

  • Flange / Straight Threaded

Porting Location

  • Side Ports / Rear Ports

Pump Technology

  • Gear

Pump Type

  • Fixed

Rotation

  • Clockwise / Counter Clockwise / Bi-Rotational

Sensor Type

  • N/A

Shaft Type

  • SAE, ISO , DIN, Industry Specific

Thru-Drive Capability

  • No

  • Power steering pumps – priority valves available
  • Brake pump
  • Brush Chipper
  • Trencher pump
  • Hydraulic Power Unit
  • Aerial Lift
  • Transfer pump
  • Lube pump
