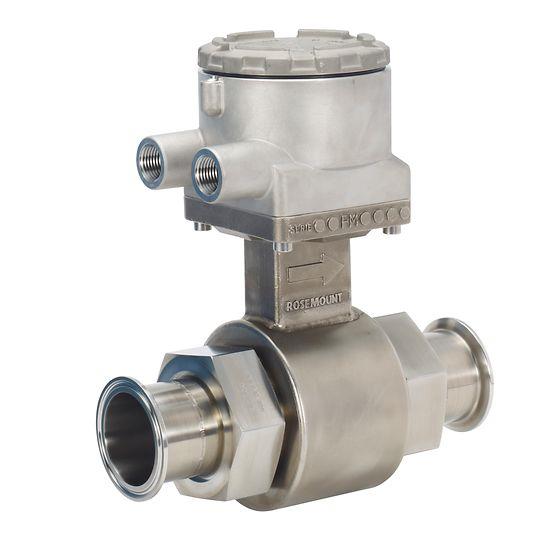

8721 Hygienic Magnetic Flowmeter Sensor
Brand: Rosemount
The Rosemount 8721 Hygienic Magnetic Flow Meter Sensor uses an all-welded meter body that is specifically designed for food, beverage and life science applications that demand safe, hygienic and reliable performance.
All contact surfaces are constructed of FDA-approved materials designed in accordance with 3A standards.
Additionally, the 8721 is available with a variety of sanitary process connections with easily accessed process gaskets to facilitate efficient inspection and maintenance.
Features- Lightweight, compact stainless steel design makes installation easy
- Rely on FDA-approved materials including 3-A finish for use in Grade A milk
- Fully-welded meter body design allow for safety in hygienic applications
- Sensor is CIP/SIP cleanable and the sensor I.D. matches the process piping to eliminate hard-to-clean step changes
- Satisfy virtually any requirement with a variety of available sanitary process connections
- Better facilitate inspection and maintenance with easily accessed process gaskets
- Cut costs and improve efficiency with an obstructionless design featuring no moving parts to maintain or repair
Specifications
Brand
Accuracy
- 0.5 % over 40:1 Flow Turndow
- Up to 0.25 % of Volumetric Flow Rate over 13: 1 Flow Turndown
Approvals & Certifications
- 3A
- EHEDG
Approvals & Certifications
- CE
- CSA
- FDA
- FM
Materials of Construction
- Electrode: 316L Stainless Steel
- Electrode: 80 % Platinum - 20 % Iridium
- Electrode: Nickel Alloy 276
- Expanded: PFA
Process Connection Style
- DIN 11851 (Imperial & Metric), DIN 11864 (-1 & -2 Form A)
- SMS 1145
- Tri-Clamp Sanitary Coupling, IDF Sanitary Coupling (Screw Typical)
- Weld Nipple / DEN US 50 Weld Nipple
Size
- Line Size: 0.5” to 4” (15 to 100 mm)
Documentation
Product Manuals
Certificates & Approvals
- 3-A Cert Authorization 1222: Rosemount 8721 Magnetic Flow Meter pdf 124 KB
- Declaration of Conformity: Magnetic Flow Meter Platform - Model 8700M pdf 1.8 MB
- Korea Certificate: EMC Rosemount 8721 Magnetic Flow Meter Sensors pdf 421 KB
- Product Certificate: PMO Product Certificate: PMO Product Certificate Letter: Rosemount 8721 Sanitary Flowmeter And The 8712E or 8732E Transmitters pdf 315 KB
- RoHS Compliance: Rosemount Vortex and Magnetic Flowmeter Compliance with EU RoHS II and RoHS III Restriction of Hazardous Substances pdf 44 KB
