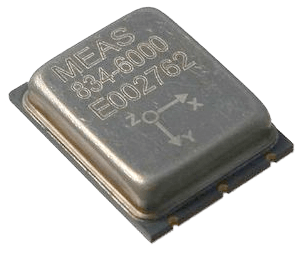

The Model 834HT is a high temperature, board mountable triaxial accelerometer.

Featuring stable piezo-ceramic crystals, the accelerometer incorporates full power and signal conditioning with a maximum current consumption of 4 micro-amps. The model 834HT is available in ±2,000 to ±6,000g ranges and provides a flat frequency response up to 6 kHz.
Features
  • ±,2,000 to ±6,000g Dynamic Range
  • Triaxial Output
  • Hermetically Sealed
  • Piezo-ceramic Crystals
  • -40°C to +150°C (-40° to 302°F) Operating Range
  • Stable Temperature Response
  • Wide Bandwidth to 6,000 Hz

1 - 2 of 2 Part Numbers
834HT-2000
834HT-2000
  • Range - ± 2,000 G
834HT-6000
834HT-6000
  • Range - ± 6,000 G
1 - 2 of 2 Part Numbers

Specifications

Accuracy

  • ± 2 % of Full Scale Output - Non-Linearity

Approvals & Certifications

  • CE
  • RoHS

Bandwidth

  • 6 kHz

Consumption

  • 4 µA, Max.

Current

  • < 40 µA - Total Supply

Enclosure, Body Material

  • Ceramic Base
  • Nickel Silver Cover

Excitation Voltage

  • 3.3-5.5 Vdc

Frequency

  • > 30,000 Hz - Natural Frequency
  • 2 to 6,000 Hz at ± 2 dB

Insulation Resistance

  • > 50 megaohms at 100 Vdc

Load Impedance

  • < 100 ohms - Output Impedance

Mounting

  • Surface Mounting - Ground Isolation

NACE & NIST

  • NIST - Traceable Amplitude Calibration

Operating Temperature

  • -40° to 150° C (-40° to 302° F)

Output Noise

  • 0.8 to 6.5 mg/√Hz at 10 Hz to 1 kHz - Spectral Noise
  • 150 µV at 1 Hz to 10 kHz - Broadband Noise

Sensitivity

  • < 8 % - Transverse Sensitivity
  • 0.20 to 0.62 mV/g at ± 30 %

Sensor, Probe Material

  • Ceramic (Shear Mode) - Sensing Element

Shock

  • 10,000 G

Storage Temperature

  • -40° to 150° C (-40° to 302° F)

Switch Type

  • Hermetically Sealed

Update Time

  • 30 milliseconds - Warm-Up Time

  • Asset Monitoring
  • Data Loggers
  • Impact Monitoring
  • Machine Health Monitoring
  • High Temperature Installations
