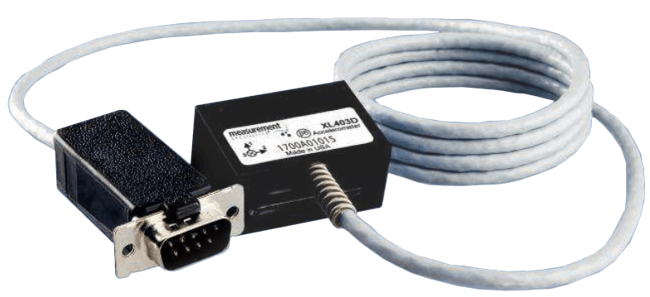

XL403D Plug & Play Accelerometer
Brand: American Sensor Technologies IncThe XL403D is the first accelerometer to support SCPI-like commands, return data in engineering units, and work with an ASCII terminal emulator.
It also performs basic functions such as evaluating minimum, maximum, magnitude, peak-to-peak, and tilt. The output is configurable by the customer - choose number of axes, units returned, bandwidth, sample rates, function specifics, and analysis results. The sensor also contains a temperature sensor, microcontroller, and Analog outputs in a small, easy-to install package.
The microcontroller takes 10-bit samples and performs temperature compensation and additional functions as programmed for output via the RS-485 interface. Order the range option best suited for your application to measure from ±1 to ±15 g, and set your own low pass filter for bandwidths from 1 to 800 Hz.
1 - 12 of 1,170 Part Numbers
XL403D-X1-R010-T004
- Axes - Uniaxial
- Range - 1 Custom Range: ± g
- Termination - 4 Feet Cable with DB9M
XL403D-X1-R010-T010
- Axes - Uniaxial
- Range - 1 Custom Range: ± g
- Termination - 1 Custom Cable Length in Feet
XL403D-X1-R010-T020
- Axes - Uniaxial
- Range - 1 Custom Range: ± g
- Termination - 2 Custom Cable Length in Feet
XL403D-X1-R010-T030
- Axes - Uniaxial
- Range - 1 Custom Range: ± g
- Termination - 3 Custom Cable Length in Feet
XL403D-X1-R010-T040
- Axes - Uniaxial
- Range - 1 Custom Range: ± g
- Termination - 4 Custom Cable Length in Feet
XL403D-X1-R010-T050
- Axes - Uniaxial
- Range - 1 Custom Range: ± g
- Termination - 5 Custom Cable Length in Feet
XL403D-X1-R010-T060
- Axes - Uniaxial
- Range - 1 Custom Range: ± g
- Termination - 6 Custom Cable Length in Feet
XL403D-X1-R010-T070
- Axes - Uniaxial
- Range - 1 Custom Range: ± g
- Termination - 7 Custom Cable Length in Feet
XL403D-X1-R010-T080
- Axes - Uniaxial
- Range - 1 Custom Range: ± g
- Termination - 8 Custom Cable Length in Feet
XL403D-X1-R010-T090
- Axes - Uniaxial
- Range - 1 Custom Range: ± g
- Termination - 9 Custom Cable Length in Feet
XL403D-X1-R010-T100
- Axes - Uniaxial
- Range - 1 Custom Range: ± g
- Termination - 10 Custom Cable Length in Feet
XL403D-X1-R010-T110
- Axes - Uniaxial
- Range - 1 Custom Range: ± g
- Termination - 11 Custom Cable Length in Feet
1 - 12 of 1,170 Part Numbers
Specifications
Accuracy
- ± 1° C (± 1.8° F) - Temperature Sensor
- ± 2 LSB - Absolute Accuracy
Cable Length
- 4 feet (1.21 metres) Standard
Electrical Connectors
- Male D-Shell Connector
Frequency
- 0 to 800 Hz - Frequency Response
Input
- 25 mA Typical - Input Current
- 8.5 to 36 V - Input Voltage (Operating)
- -80 to 80 V - Input Voltage Limits
Measuring Range
- ± 1 to ± 15 G
Mounting
- Horizontal or Vertical
NACE & NIST
- NIST
Non-Linearity
- 0.1 % of Full Scale Reading Typical
- 0.25 % of Full Scale Reading, Max.
Output
- 0.5 - 4.5 V - Output Voltage Swing
Output Noise
- 100 μg/√Hz - Noise Density at 10 to 400 Hz
Resistance
- 5 kiloohms - Self Test Pull-Up Resistor
Resolution
- 10-bits Typical - ADC Resolution
Sensitivity
- ± 0.25 % - Transverse Sensitivity
- 400 mV/g - Typical at 25° C (77° F)
Shock
- -5,000 to 5,000 G
Temperature Effect
- ± 0.2° C (0.36° F) - Temperature Sensor
Temperature Range
- -40° to 85° C (-40° to 185° F)
Thermal Drift
- ± 0.65 % Typical - Drift at 25° C (77° F)
- ± 3 %, Max.
Zero Offset
- 10 mg Typical - Drift Zero G Bias Level at 25° C (77° F)
- 2.5 ± 0.01 V Typical - Zero G Bias Level at 25° C (77° F)
- 20 mg, Max.
