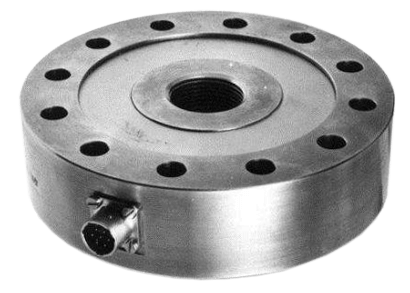

AST Force Load Cell, FN3000

FN3000 Force Load Cell

Brand: American Sensor Technologies Inc
Add Product to My Catalog

The FN3000 measures tension and compression in standard ranges from 0 to10 kN to 0 to1000 kN.

The mechanical design and gauge placement minimizes transverse effects. Depending on the range, the FN3000 is constructed in Aluminum alloy or stainless steel and is available with numerous options.

It is suitable for test bench applications and used in many hostile environments and can be customized for increased protection. With many years of experience as a designer and manufacturer of sensors, TE Connectivity often works with customers to design or customize sensors for specific uses and testing environments.

To meet your needs we also offer complete turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.
Features
  • Static and dynamic applications
  • Linearity 0.1% F.S.
  • Integrated Amplifier optional
  • IP65 optional

View_Details

Specifications

Brand

Applications

  • Fatigue Test Benches
  • Hydraulic Press Regulation
  • Laboratory & Research
  • Process Control Equipment
  • Weighing Calibration Tool

Approvals & Certifications

  • CE
  • EN 50081-1
  • EN 50082-1
  • EN 61010-1

Compensated Temperature

  • 0° to 60° C (32° to 140° F)

Consumption

  • < 50 mA

Enclosure, Body Material

  • Aluminum Alloy
  • Stainless Steel

Environmental Protection

  • IP50

Hysteresis

  • ± 0.1 % of Full Scale

Input Impedance

  • 350 to 700 ohms

Insulation Resistance

  • ≥ 100 megaohms

Linearization

  • ± 0.1 % of Full Scale

Load Impedance

  • 350 to 1,000 ohms - Output Impendance

Operating Temperature

  • -20° to 80° C (-4° to 176° F)

Sensitivity

  • < 1 % of Reading / 50° C (100° F) - Thermal Sensitivity Shift
  • ± 2 mV/V of Full Scale Output
  • ± 2 V ± 0.2 V of Full Scale Output
  • ± 5 V ± 0.2 V of Full Scale Output

Supply Voltage

  • ± 15 Vdc (± 12 to ± 18 Vdc)
  • 10-30 Vdc

Thermal Drift

  • < 0.5 % of Full Scale/50° C (100° F)

Zero Offset

  • < ± 5 % of Full Scale
  • 0 V ± 0.2 V
  • 2.5 V ± 0.2 V

  • Process control equipment
  • Weighing calibration tool
  • Fatigue tests benches
  • Hydraulic press regulation
  • Laboratory and Research

Documentation

Data Sheets
