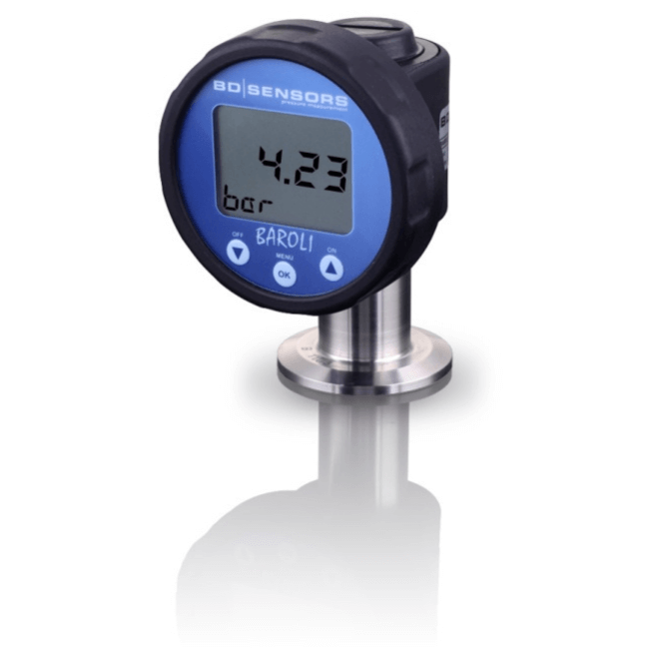

BAROLI 02P Digital Pressure Gauge
Brand: BD SensorsThe battery-powered digital pressure gauge BAROLI 02P with flush welded stainless steel sensor enables a local displaying of values in applications, where high requirements on hygienic process connections and easy cleaning or serializability are requested.
The filling medium is food compatible oil with FDA approval.
The BAROLI 02P display housing is rotatable, thus ensuring an easy reading even under unfavorable mounting conditions.
Additional functions are switching the unit, displaying minimum / maximum values, calibrating the offset and the end point, configuring the automatic switching-off.
Features- Nominal pressure from psi: 0 to 580.1 (kPa: 0 to 4,000, bar: 0 to 40)
- Rotatable housing
- 2-line LC display
- 4.5-digit 7-segment display
- 6-digit 14-segment additional display
- Hygienic process connections
Specifications
Brand
Approvals & Certifications
- CE-Conformity
- EMC: Emission & Immunity According to EN 61326, 2014/30/EU
- FDA Certificate
- REACH
- RoHS
BSP Connection
- G 1” (DIN 3852) with Flush Diaphragm
- G 1/2” (DIN 3852) with Flush Diaphragm
Diaphragm Material
- 316L Stainless Steel, 1.4435
Enclosure, Body Material
- 316L Stainless Steel, 1.4401
- Display Housing: PA 6.6
- Display Housing: Polycarbonate
Environmental Protection
- IP65
Fill Material
- Filling Fluids: Food Compatible Oil with FDA-Certificate
- Filling Fluids: Silicone Oil
Pipe Connection
- Dairy Pipe DN 25 (DIN 11851)
Pressure Range
- bar: 0 to 40
- kPa: 0 to 4,000
- psi: 0 to 580
Pressure Type
- Absolute
- Gauge
Tri-Clamp Connection
- 1-1/2” Tri-Clamp
