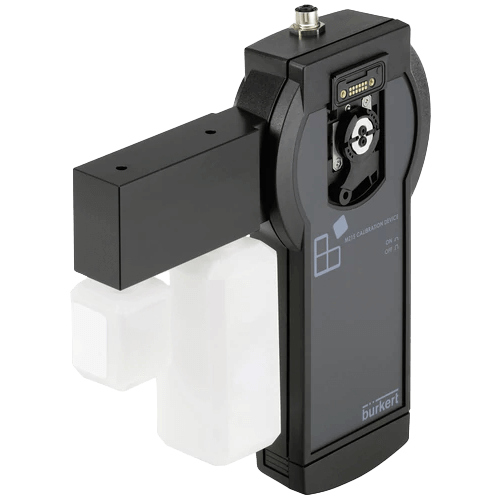

MZ15 Handheld Calibration & Cleaning Tool
Brand: Burkert Fluid Control Systems
The MZ15 tool is easy to use and can be used to individually calibrate or clean the sensor cubes used in the online analysis system, Type 8905. This accessory for the online analysis system, Type 8905, also makes it possible to extend the flexibility of the latter, and thus also its economical and rapid operation.
The MZ15 handheld cleaning or calibration tool simply meets individual performance standards.
Features- Manual cleaning or calibration of sensors on demand
- To ensure individual quality standards and guidelines
- Reliable and long-term accurate measurements
- Flexible use for cost-effective, on-site quality management
Specifications
Ambient Temperature Range
- 3° to 40° C (37° to 104° F)
Approvals & Certifications
- CE
- cULus - UL 61010-1 + CAN/CSA C22.2 No.61010-1 (Pending)
- EU Directive
- UL
Connection Material
- Fixed Connector M12: Brass (CuZn)
- Fixed Connector M12: Polyamide (PA)
- Fixed Connector M12: Polyester Urethane (Au)
- Fixed Connector M12: Zinc (Zn)
Electrical Connectors
- M12 Male Connector - Calibration Tool
- Sensor Powering: M12 Plug Connection - Calibration Tool
Enclosure, Body Material
- Acrylonitrile Butadiene Styrene (ABS)
Environmental Protection
- IP20 According to EN 60529
Humidity
- < 90 % Non-Condensing, without Condensation
Materials of Construction
- Polyamide
- Polyoxymethylene (POM)
- Polyphenylene Sulfide
- Silicone
Operating Voltages
- 4 times 1.5 Vdc Non-Rechargeable Alkaline (LR6 AA) Batteries
Screw Material
- Stainless Steel, Steel Passivated
Seat / Seal Material
- Seal: EPDM
