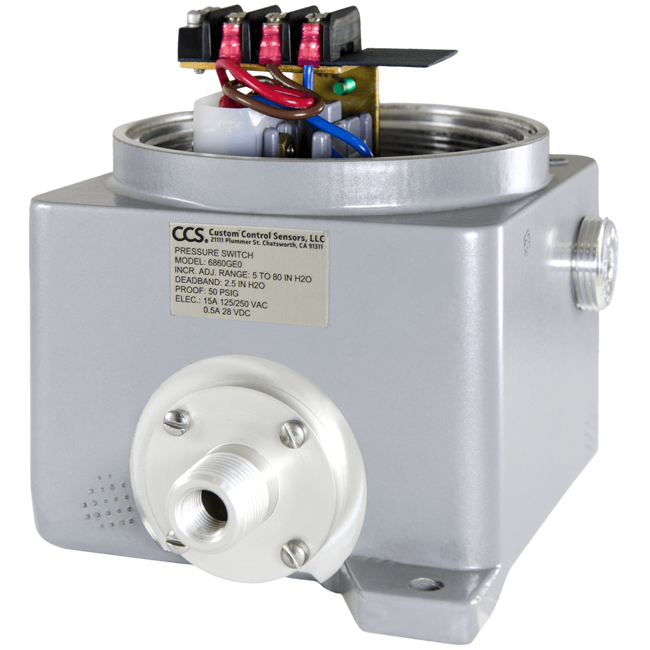

6862GE Series Pressure Switch
Brand: Custom Control Sensors, LLC
Features
- Rigid and internally adjustable for convenient field set point adjustment.
- Repeatable and stable set points.
- High cycle life.
- High over-pressure capability.
- Equipped with a certified explosion-proof electrical enclosure.
- Allows for dual set points.
1 - 4 of 4 Part Numbers
6862GE1
- Adjustable Set Point Range
- Increasing
- psig 1 - 27
- kPa 6.9 - 186.1
- bar 0.069 - 1.86
- Decreasing
- psig 0.95 - 26.75
- kPa 6.6 - 184.4
- bar 0.065 - 1.85
- Increasing
- Deadband - Approximate: 0.1 - 0.2 psi, 0.69 - 1.37 kPa, 6.89 - 13.79 mbar
- System Pressure - Maximum: 75 psig, 517.11 kPa, 5.17 bar
- Proof Pressure: 100 psig, 689.48 kPa, 6.89 bar
- Wetted Materials
- Pressure Port: 1/4" FNPT Aluminum
- Diaphragm: Polyimide
- O-Ring: Buna N
- Relay: SPDT
- CE Mark
- Explosion Proof CSA approved Enclosure
6862GE1-7008
- Base Model - 6862GE1
- Electrical Contacts - Gold Contacts
6862GE3
- Adjustable Set Point Range
- Increasing
- psig 3 - 100
- kPa 20.7 - 689.4
- bar 0.21 - 6.89
- Decreasing
- psig 2.8 - 98.5
- kPa 19.4 - 679.1
- bar 0.19 - 6.79
- Increasing
- Deadband - Approximate: 0.2 - 1 psi, 1.4 - 6.8 kPa, 13.79 - 68.9 mbar
- System Pressure - Maximum: 200 psig, 1378.95 kPa, 13.79 bar
- Proof Pressure: 250 psig, 1723.68 kPa, 17.24 bar
- Wetted Materials
- Pressure Port: 1/4" FNPT Aluminum
- Diaphragm: Polyimide
- O-Ring: Buna N
- Relay: SPDT
- CE Mark, Explosion Proof Enclosure
6862GE3-7008
- Base Model - 6862GE3
- Electrical Contacts - Gold Contacts
1 - 4 of 4 Part Numbers
Specifications
Adjustment Type
- Field Adjustable
Approvals & Certifications
- CE
- CRN
- CRN - Saskatchewan
- EMC
- LVD
- RoHS
Deadband, Approximate
- mbar: 6.89 to 68.9
- psi: 0.1 to 1
Diaphragm Material
- Polyimide
Electrical Certification
- CSA #C22.2 No. 30-M1986 - Explosion-proof Enclosure for use in Class I Hazardous Locations. File #L
- FM #3600 & 3615 File #2Y4A5.AE
- UL #UL 886 - Outlet Boxes & Fittings for use in Hazardous (Classified) Locations. File #E10514. #UL 1203 - Explosion-proof & Dust Ignition-Proof Electrical Equipment. File #E83969
Electrical Connectors
- 3/4” NPT Female
Electrical Contacts
- Gold
- Silver
Electrical Rating
- 15 A at 125/250/480 Vac Resistive, 0.4 A at 125 Vdc, 0.2 A at 250 Vdc
Enclosure, Body Material
- Aluminum
Environmental Protection
- Hazardous Area
- IP66
- IP67
- NEMA 13
- NEMA 4
- NEMA 7
- NEMA 9
NPT Connection
- 1/4” NPT Female
O-Ring Material
- Buna-N
Operating Temperature
- -40° to 86° C (-40° to 187° F)
Process Connection Material
- Aluminum
Proof Pressure
- bar: 6.89 to 17.24
- kPa: 689.5 to 1,724
- psig: 100 to 250
Service
- Sweet (Oil & Gas)
Set Point - Decreasing
- bar: 0.065 to 6.79
- kPa: 6.6 to 679.1
- psig: 0.95 to 98.5
Set Point - Increasing
- bar: 0.069 to 6.89
- kPa: 6.9 to 689.4
- psig: 1 to 100
Standard Features
- Weatherproof
System Pressure
- bar: 5.17 to 13.79
- kPa: 517.2 to 1,379
- psig: 75 to 200
