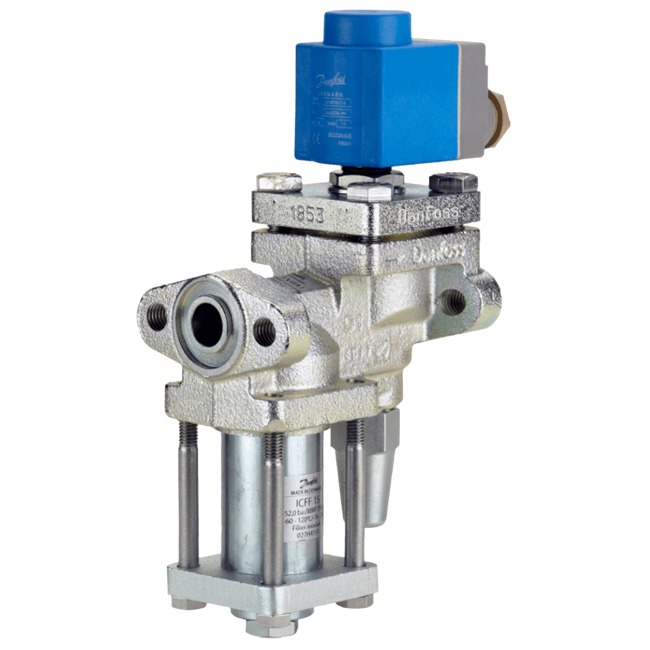

ICF 15/20 EVRAT FA + Solenoid Valve

Brand: Danfoss

Based on advanced technology the ICF EVRAT retrofit valve incorporates three functions in one housing, which can replace the widely used direct coupled FA + EVRAT, as a drop-in solution.

The two function modules - solenoid valve and manual opener are identical to the function modules in the ICF 20 valve station concept thus facilitating logistic and service.

The solenoid valve is an assisted, servo operated valve for liquid, suction and hot gas lines with ammonia and flourinated refrigerants.

Supplied as a complete assembly, it is fully tested at high pressure and its functions are tested under factory controlled conditions.
Features
  • Applicable to HCFC, non flammable HFC and R717 (Ammonia). The use of ICF EVRAT with flammable hydrocarbons is not recommended
  • Designed for industrial refrigeration applications for a maximum working pressure of 42 bar/610 psig
  • Low temperature steel housing
  • Low weight and compact design
  • The solenoid valve ICFE 20 is designed to open - and stay open at a pressure drop of 0 bar, thus suitable for lines with low pressure drop
  • UL approved

1 - 4 of 4 Part Numbers
027L451
027L451
  • Type - ICF 15 EVRAT
027L4517
027L4517
  • Type - ICF 15 EVRAT
  • Solenoid - ICFE 20
027L4518
027L4518
  • Type - ICF 20 EVRAT
  • Solenoid - ICFE 20
027L4519
027L4519
  • Type - ICF 20 EVRAT
  • Solenoid - ICFE 20H
1 - 4 of 4 Part Numbers

Specifications

Brand

Ambient Temperature Range

  • -30° to 50° C (-22° to 122° F)

Applications

  • Designed for Industrial Refrigeration

Approvals & Certifications

  • BV
  • CRN
  • DNV
  • EAC
  • EN ISO 2081: 2009
  • UL

Bonnet Material

  • Flange, ICFF 15, Cylinder: Steel

Bore Size

  • ≤ 1” (25.4 mm)

Cap Material

  • Seal Cap: Steel

Electrical Connectors

  • Hex-Head Bolt: M10 x 25

Enclosure Finish

  • Zinc-TLP Corrosion Protection

Enclosure, Body Material

  • Cast Iron

Flange Material

  • Cast Steel Low Temperature

Gasket Material

  • Chloroprene
  • Chloroprene Rubber
  • Fiber, Non-Asbestos
  • Metal Joint: Aluminum
  • Neoprene
  • Seal Cap Gasket: Nylon
  • Steel

Materials of Construction

  • Armature Tube, Filter: Stainless Steel
  • Plug (3/8” NPT), Manual Opener: Steel

NPT Connection

  • Plug: 3/8” NPT

Nut & Bolt Material

  • Gland Nut: Steel
  • Hex-Head Bolt, Armature Tube Nut: Stainless Steel

Operating Pressure

  • psi: 609 (kPa: 4,200, bar: 42) - Max.

Piston Material

  • Steel

Plug Material

  • Steel

Ring Material

  • PTFE
  • Sealing Ring: Teflon

Seat / Seal Material

  • PTFE
  • Seat: High Density Polymer
  • Seat: Teflon
  • Steel

Spindle Material

  • Stainless Steel

Spring Material

  • Wave Spring: Steel

Temperature Range

  • -40° to 105° C (-40° to 221° F)
