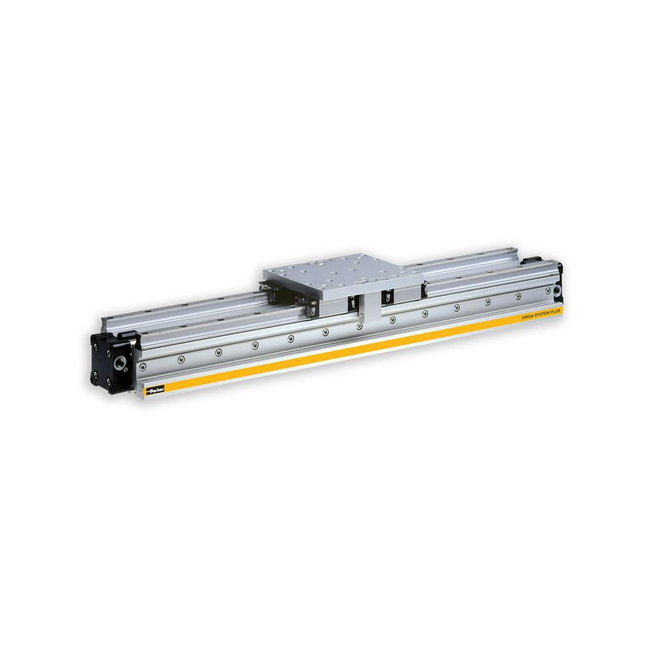

OSPE50-ST Trapezoidal Screw Driven, HD Heavy Duty Ball Bearing, Rodless Electric Linear Actuator

OSPE50-ST Trapezoidal Screw Driven, HD Heavy-Duty Ball Bearing, Rodless Electric Linear Actuator

Brand: Parker Hannifin
Add Product to My Catalog

With multiple standard options and IP54 rating, OSPE-ST 50 lead screw driven actuators are designed for low-speed, low duty cycle, medium thrust applications. The trapezoidal screw prevents back driving ideal for vertical applications. Payloads to 18000N.

The HEAVY DUTY ball bearing option OSPE50-ST lead screw driven electric linear actuator is designed for slow speed and medium thrust applications self-locking and best choice in safe vertical applications without additional brake system for duty cycles up to 10% in linear positioning transfer handling operations within industrial, manufacturing and assembly environments.
Features
  • Lead screw driven actuator for smooth speed and economic point to point positioning
  • Self-locking lead screw for safe horizontal and vertical applications
  • Heavy duty 4-Row ball bearing system for highest loads in all directions
  • Precision ground and hardened steel guide rails for improved life expectancy
  • Integrated seal strip offering IP54 protection
  • Pre-configured motor and gearhead mounting kits for simplified installation
  • Contactless sensing for positional feedback

Specifications

Brand

Additional Protection Option

  • Steel Strip Cover

Approvals & Certifications

  • Cleanroom Certified (Custom Option)

Bearing Type

  • HD Heavy Duty Recirculating Ball Bearing Guide

Corrosion Resistant Option

  • No

Drive Type

  • Leadscrew

Idler Unit Option

  • No

Linear Feedback Device

  • No

Maximum Acceleration (Inch/S2)

  • 77.3

Maximum Acceleration (m/S2)

  • 2

Maximum Payload FZ (N)

  • 18000

Maximum Speed (inch/sec)

  • 5.9

Maximum Speed (m/sec)

  • 0.15

Maximum Stroke (inch)

  • 98

Maximum Stroke (mm)

  • 2500

Maximum Thrust FX (Lbs)

  • 562

Maximum Thrust FX (N)

  • 2500

Position Repeatability (± Inch)

  • 0.02

Position Repeatability (± mm)

  • 0.5

Profile Width (mm)

  • 87

Series

  • OSP-E

Typical Payload FZ (N)

  • 1200 - 18000

  • Pick and Place Applications
  • Packaging, Labeling and Wrapping Systems
  • Pusher, Picker and Gripper Applications
  • Positioning
  • Feeding
  • Cutting
  • Markets:
    • Factory Automation
    • Miscellaneous Industrial
    • Miscellaneous Manufacturing
    • Packaging Machinery
    • Printing and Marking Equipment
    • Vehicle Assembly Facilities
    • Lab / Diagnostic
    • Coatings / Ink / Paint
    • Food & Beverage
