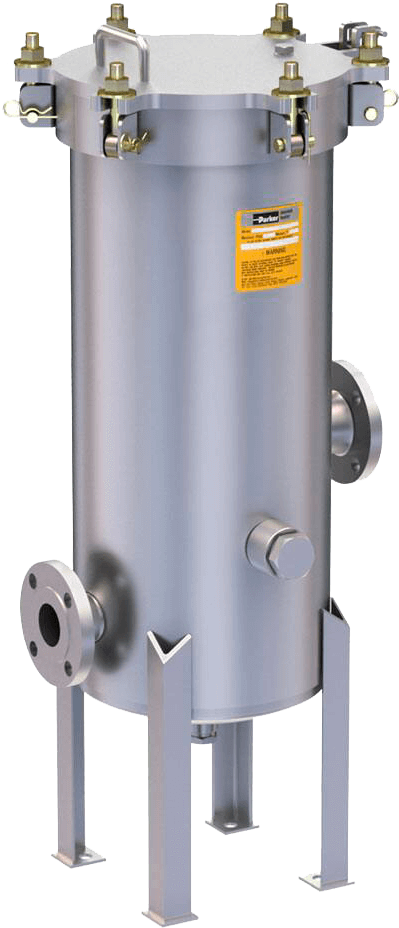

Fluflo WH Multi - Cartridge Filter Vessels | 304 & 316 Stainless Steel, Non ASME Code Design Liquid Filtration

Brand: Domnick Hunter - by Parker

The WH cartridge filter vessels are a lightweight, economical, Non-ASME industrial / commercial design suitable for a wide variety of liquid filtration applications.

The 100% stainless steel and passivate finish provides superior corrosion resistance and an excellent appearance. The swing type closure bolts and hinged cover design (up to 35 round) make cartridge change-out quick and easy.
Features
  • Hinged cover (up to 35 round) and swing bolt closure for fast, easy cartridge change-out
  • Maximum design pressure is 150psi (10.3bar) at 250°F (121°C) for use in a wide range of operating conditions
  • 100% stainless steel for corrosion resistance. Bolting is zinc plated carbon steel
  • Dual purpose filter cartridge seats for use with double-open-end & 2-222 O-ring single-open-end filter cartridges
  • Standard finish is passivated
  • 316 stainless steel cartridge seats, top seat plate assemblies, & tri - fold element guides for long term use
  • Standard Buna - N O-ring with optional fluoroelastomer and EPR for wide range of applications
  • Standard features include vent, clean drain & dirty drain connections
  • Available in 304 & 316 stainless steel

Specifications

Industry

  • Industrial
  • Inks, Paints and Coatings

Function

  • Clarification
  • Prefiltration
  • Polishing

Filter Construction

  • Multi - Cartridge Filter Vessel

Specifications Met

  • Non-ASME Code

Maximum Operating Pressure

  • 150 psi / 10.3 bar

Maximum Operating Temperature

  • 250° F

Flow Rate

  • 252 gpm
  • 168 gpm
  • 336 gpm
  • 224 gpm
  • 448 gpm
  • 294 gpm
  • 441 gpm
  • 588 gpm
  • 203 gpm
  • 406 gpm
  • 609 gpm
  • 812 gpm
  • 245 gpm
  • 490 gpm
  • 735 gpm
  • 189 gpm
  • 980 gpm
  • 126 gpm
  • 196 gpm
  • 28 gpm
  • 56 gpm
  • 84 gpm
  • 112 gpm
  • 49 gpm
  • 98 gpm
  • 147 gpm
  • 63 gpm

Seal Material

  • Buna-N

  • Potable Water Filtration
  • Process Water Filtration
  • Edible Oils Filtration
  • Beverages Filtration
  • Chemicals Filtration
  • Solvents Filtration
  • Pre - Reverse Osmosis Filtration
