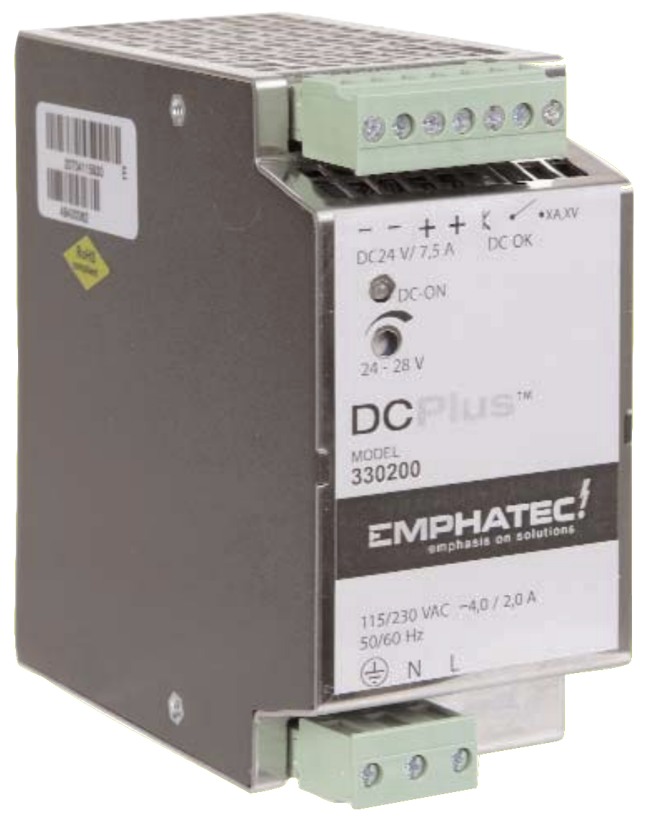

DC Plus 180W Power Supply.png

DC Plus 180W Power Supply

Brand: Emphatec
Add Product to My Catalog

The DC Plus 180W power supply requires minimal panel space yet provides 24 Vdc at 7.5 A. Key features include a universal input, plug and socket connections, adjustable output voltage and a fault relay.

Like its big brothers the 360W and 600W versions, this power supply is certified for Class 1 Division 2 applications.

Other approvals include cCSAus for UL508, UL60950-1, CSA 22.2 No.14 and CSA60950-1-3, ATEX for Zone 2 and the CE mark. Whether a new design or a retrofit to an existing control panel, the DC Plus 180W is the ideal solution.
Features
  • Universal input

  • 24 Vdc at 7.5 A

  • Class 1 Division 2 certified for hazardous location requirements

  • Requires just 54 mm of DIN rail

    • Specifications

    Brand

    Applications

    • Cooling: Convection, No Internal Fan
    • Overcurrent Recovery: Automatic Restart

    Approvals & Certifications

    • ATEX: Zone 2 EEX N CII C T4U
    • CE
    • CSA (C,US): UL 508, UL 60950-1, CSA 22.2-No.14, CSA 60950-1-3
    • UL (C,US): UL 60079-15-02, CSA 60079-15-02, Class I, Div. 2, Groups A, B, C, D

    Circuit Protection

    • Output Overvoltage Protection 35 Vdc

    Current

    • De-Rating: 4.9 A at 60° C (140° F)
    • Inrush Current (115 Vac): < 13 A
    • Inrush Current (230 Vac): < 25 A

    Electrical Connectors

    • 28 to 12 AWG (0.5 to 2.5 mm²)
    • Plug

    Electrical Contacts

    • Normally Closed

    Electrical Rating

    • Fault Relay: 1 Form A, Normally Closed, 1 A at 30 Vdc, Max.

    Frequency

    • Input Frequency: 47 to 63 Hz

    Function

    • 100 mV Peak-Peak Typical 200 mV Peak-Peak, Max.

    Indication

    • Bi-Color LED: Green (OK), Red (Fault)

    Input

    • 85-264 Vac

    Input Power

    • Universal Power Input

    Mounting

    • DIN Rail Mounting

    Operating Temperature

    • -25° to 40° C (-13° to 104° F)

    Output

    • Output Current: 7.5 A at 24 Vdc
    • Output Voltage: 24-28 Vdc
