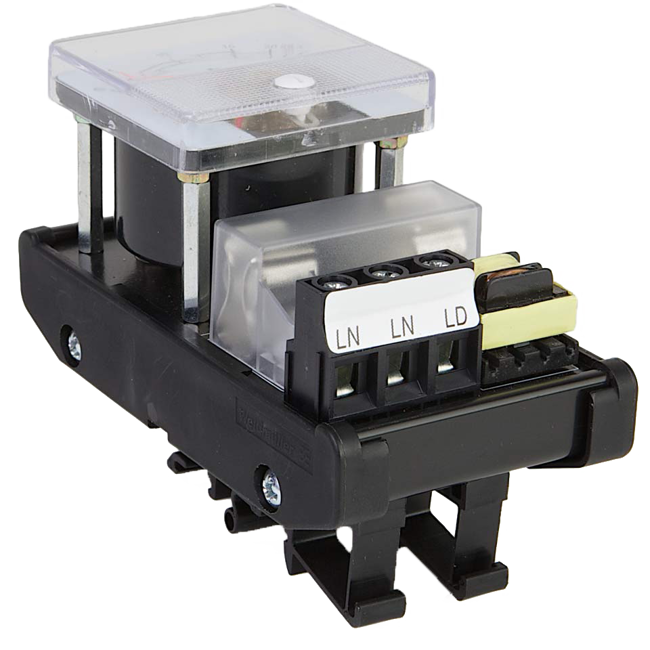

Vanguard-MFM Main Fuse Module

Brand: Emphatec
Add Product to My Catalog

The module accepts a standard midget fuse which is socket mounted under a protective cover secured in place by a screw.

This makes it fully touch safe. Fuses rated up to 25 A can be used. A current transformer in series with the fuse drives an Analog meter that displays the load current. An external power supply is not required.
Features
  •  Socket for 13/32" x 1-1/2" midget fuse with touch safe cover

  •  Built in current transformer and Analog ammeter

  •  Rated 25 A maximum

  •  DIN rail mounted

    • Specifications

    Brand

    Approvals & Certifications

    • UL Listed (UL 508)

    Current

    • 25 A AC Continuous, Max.

    Electrical Connectors

    • 26 to 10 AWG

    Mounting

    • DIN Rail

    Torque

    • 0.5 to 0.6 Nm

    Voltage

    • 120 Vac
    • 230 Vac
