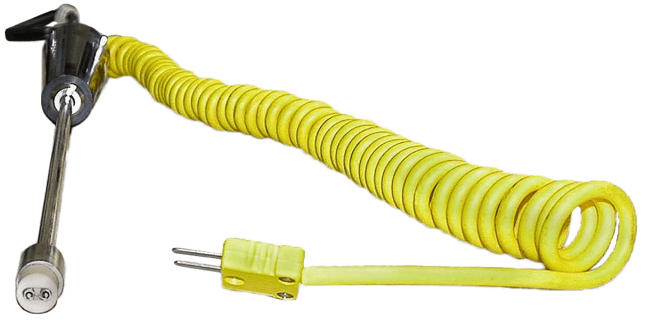

83115 Surface Temperature Probe
Brand: TegamModel 83115 is used for monitoring hot plates, furnaces, molds and other hot solid surfaces.
Exposed thermocouple junction provides quick response upon direct contact.
For fast response measurement of all types of surfaces.
Sheaths are 5" in length and are constructed with 304 stainless steel.
The thermal junction is actually mounted on a 1/4" diameter tip and makes direct contact with the surface being measured. 3-feet coil cord.
Specifications
Brand
Accuracy
- ± 1.5 %
Cable Length
- 3 feet (1 metre) - Coil Cord
Length
- 8” (203.2 mm) - Sheath
Materials of Construction
- 304 Stainless Steel - Sheath
Response Time
- 1 second
Sensor, Probe Diameter
- 1/4” Ceramic Tip
Sensor, Probe Type
- Exposed Thermocouple
- K-Typical
Temperature Range
- -18° to 482° C (0° to 900° F)
