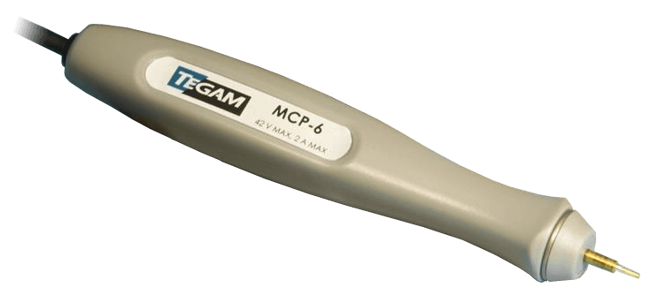

Tegam Miniature Coaxial Probe, MCP-6

MCP-6 Miniature Coaxial Probe

Brand: Tegam
Add Product to My Catalog

The Kelvin coaxial probe comes with a spring-loaded center pin for voltage detection, while the outer pin provides the reference current.

The test leads are 6 feet long and are terminated with dual banana plugs.

The probe comes with the pins installed. Ideal for precision resistance measurements in tighter spaces.

Outer pin diameter is 0.06 Inches (0.15 cm).

The inner tip diameter is 0.4 mm.

Specifications

Brand

Cable Length

  • 6 feet (1.82 m)

Electrical Connectors

  • Dual Banana Plugs

Maximum Current

  • 2 A

Maximum Voltage

  • 42 V

Resistance

  • 100 milliohms - Typical Source Lead Resistance
  • 450 milliohms - Typical Sense Lead Resistance

Sensor, Probe Diameter

  • 0.016" (0.4 mm) - Inner Tip
  • 0.06" (1.52 mm) - Outer Pin

Documentation

Data Sheets
