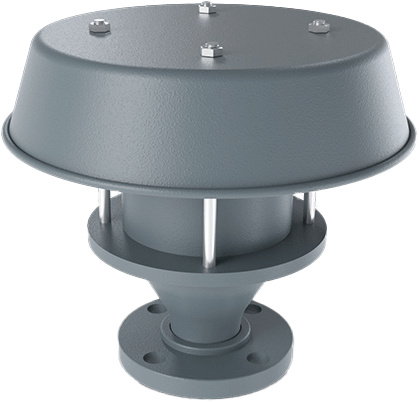

Series 29000 End-of-Line Crimped Metal Flame Arrester
Brand: Protectoseal CompanyThe Protectoseal Series 29000 End-of-Line Crimped Metal Flame Arrester is installed where it is necessary to protect against external unconfined deflagrations from entering the tank’s vapor space but not necessary to conserve vapor losses.
They have been certified for use with the following chemical vapor mixtures as defined in the National Electric Code (NEC) Article 500:. Series 29000 - Suitable for Groups D & C chemical vapors, generally equivalent to International Electrotechnical Commission (IEC) Groups IIA & IIB3.
Features- Series 29000 for NEC Groups D & C, IEC Groups IIA & IIB3 Vapors
- Accurate and consistent element windings
- Low pressure drops, less susceptible to clogging
- Weather hood easily removed for maintenance
- Available in Carbon Steel & Stainless Steel
- Factory inspected prior to shipment
- Removable element
Specifications
Brand
Approvals & Certifications
- NEC
Enclosure, Body Material
- 316 Stainless Steel
- Carbon Steel
Flange Size - 2” (DN 50)
- 2” (DN 50) - 150#
- 2” (DN 50) - PN 16
Flange Size - 3” (DN 80)
- 3” (DN 80) - 150#
- 3” (DN 80) - PN 16
Flange Size - 4” (DN 100)
- 4” (DN 100) - 150#
- 4” (DN 100) - PN 16
Flange Size - 6” (DN 150)
- 6” (DN 150) - 150#
- 6” (DN 150) - PN 16
