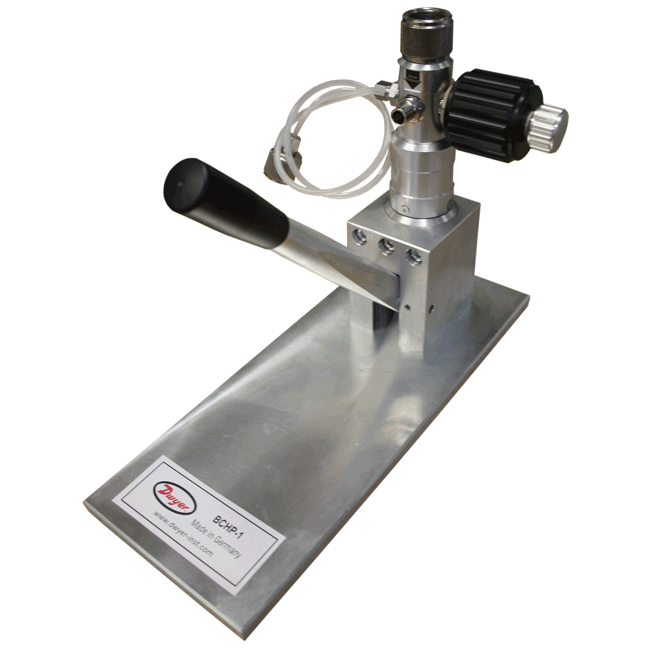

Series BCHP Low Pressure Calibration Pump
Brand: Dwyer Instruments, LLCThe Series BCHP Calibration Test Pump is able to generate pressure and vacuum for adjusting or calibrating pressure gages, transmitters, or switches.
The pump is hand operated and has a pneumatic pressure range of -28 in Hg to 870 psi (-0.95 bar to 60 bar).
Dual pressure ports allow two instruments to be connected to the pump without additional fittings. The Series BCHP can be used in laboratories and production areas. The fine adjustment valve on this pump ensures precise measurements.
Features- Dual Pressure Ports for Ease of Use
- Fine Adjustment Valve Ensures Precise Measurements
Specifications
Brand
BSP Inlet
- 1/2" BSP Female
- 1/4" BSP Female
BSP Outlet
- 1/2" BSP Female
- 1/4" BSP Female
Materials of Construction
- ABS Plastic
- Aluminum - Anodized
- Brass
Media
- Air
Output Pressure
- -28 inHg to 870 psi (kPa: 6,000, bar: 60)
- Instrument Calibration
- Laboratories
- Production Areas
