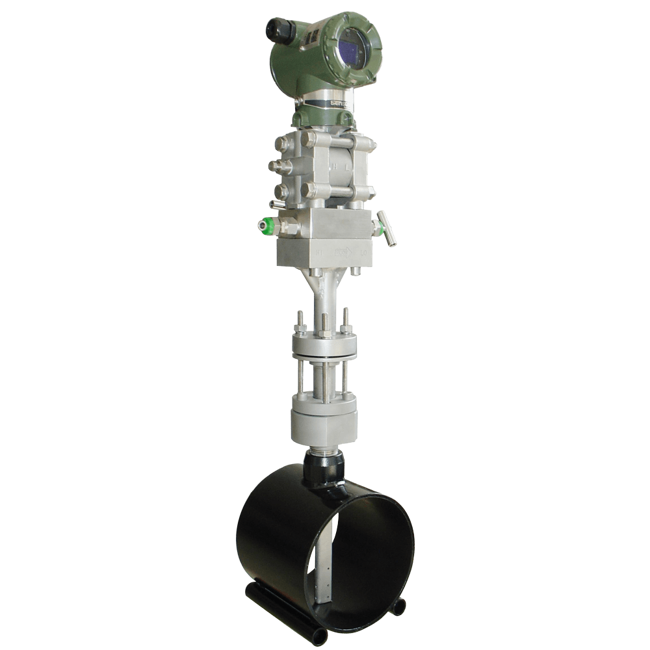

V200 Verabar Pitot Tube Flow Sensor
Brand: Yokogawa Electric Corporation
The Most Accurate and Reliable Technology for Measuring Gas, Liquid and Steam
Developed from aerospace technology, the VERIS Verabar® averaging pitot flow sensor provides unsurpassed accuracy and reliability.
With its solid, one-piece construction and bullet shape, the VERIS Verabar® makes flow measurement leak resistant and precise.
The unique sensor shape reduces drag and flow induced vibration.
The location of the low pressure ports significantly reduces the potential for clogging and improves signal stability.
Features- Most Commonly Used Hot Tap Model
- Installation, Insertion & Retraction without System Shutdown
- Economical Single Threaded Rod for Most Applications
- Two Threaded Rods for High Pressures
- Synchro Drive Simultaneously Rotates Both Rods (Double Rod Drives Only)
- Patented, Anti-seize Orbital Bearing Aligns Threaded Rods and Eliminates Galling
- Can Mount to Existing Valves
Specifications
Applications
- Air (Compressed, Combustion)
- Natural Gas
- Steam
- Water (Raw, Cooling, Feedwater)
Flange Size - 1-1/4” (DN 32)
- 1-1/4” (DN 32) - 150# ANSI
- 1-1/4” (DN 32) - 600# ANSI
Flange Size - 2” (DN 50)
- 2” (DN 50) - 150# ANSI
- 2” (DN 50) - 600# ANSI
Flange Size - 3/4” (DN 20)
- 3/4” (DN 20) - 600# ANSI
Gland Packing Material
- Stainless Steel
Head Material
- Stainless Steel - Instrument Head
Instrument Connection
- 1/2” NPT
Materials of Construction
- Bronze - Access Valve
- Carbon Steel - Weld Coupling, Access Nipple, Access Valve, Close Nipple
Media
- Gas
- Liquids
- Steam
Mounting
- Ball Valve Typical
- Direct Mounting
- Gate Valve Typical
- Manifold
- Remote Mounting
Mounting Position
- Horizontal
- Vertical
NPT Connection
- 1-1/4” NPT - Weld Coupling Size
- 2” NPT - Weld Coupling Size
- 3/4” NPT - Weld Coupling Size
Pipe Size
- 12” to 60” (300 to 1,500 mm)
- 2” to 6” (50 to 150 mm)
- 6” to 42” (150 to 1,050 mm)
Pressure Range
- psig: 0 to 1,440 (kPa: 0 to 9,930, bar: 0 to 99.3)
Screw Material
- Stainless Steel - Screw Drive (Threaded Rod), Weld Coupling, Access Nipple, Access Valve, Close Nipple
Sensor, Probe Diameter
- 1-3/8” (35 mm)
- 7/16” (11 mm)
- 7/8” (22 mm)
Sensor, Probe Material
- 316 Stainless Steel
Sensor, Probe Type
- RTD
Temperature Range
- 38° to 426° C (100° to 800° F)
Wetted Materials
- Stainless Steel
- Air (Compressed, Combustion)
- Natural Gas
- Steam
- Water (Raw, Cooling, Feedwater)
