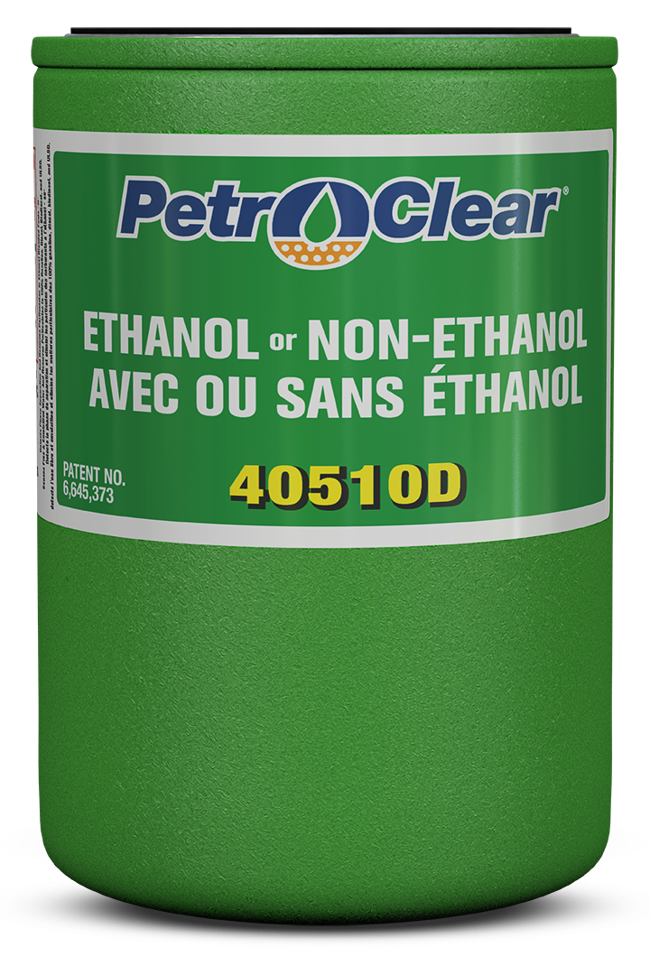

405 D Series “Dual Purpose”
Brand: Petro ClearPetroClear® models 40510D and 40530D are spin-on filters designed to remove particulate in gasoline, ethanol blends, diesel and biodiesel.
PetroClear® models 40510D and 40530D sense both free and emulsified water in neat gasoline, diesel and biodiesel.
PetroClear® models 40510D and 40530D detect and react to phase separation in Ethanol blended gasoline and slow flow as an indicator to the presence of phase separation.
Features- PetroClear® model 40510D offers efficient 10 micron (nominal) particulate removal, senses both free and emulsified water and detects and reacts to phase separation
- PetroClear® model 40530D offers efficient 30 micron (nominal) particulate removal, senses both free and emulsified water and detects and reacts to phase separation
- The “dual purpose” models provide protection during the transition from neat gasoline to ethanol blends without the need to change filters
- Textured paint coating helps ensure a simple, mess-free installation and removal process
- UL® recognized.
Specifications
Brand
Certifications & Approvals
- UL
Filter Type
- Spin-On
Media Type
- Cellulose with Super Absorbent Media and Chemical Core
Micron Rating
- 10 Micron (Nominal)
- 30 Micron (Nominal)
Diameter
- 3.7"
Height
- 5.36"
Flow Rate
- 25 gpm (94.6 lpm)
Flow
- 3/4" Flow
Shell Thickness
- 0.020
Gasket Material
- Buna N
Collapse
- Min. 150 psid (10.3 bar)
Burst
- MIn. 250 psi (17.2 bar
Operating Temperature
- -20° to 250° F (-28.9° to 139°C)
Mounting Thread
- 1"-12 UNF
