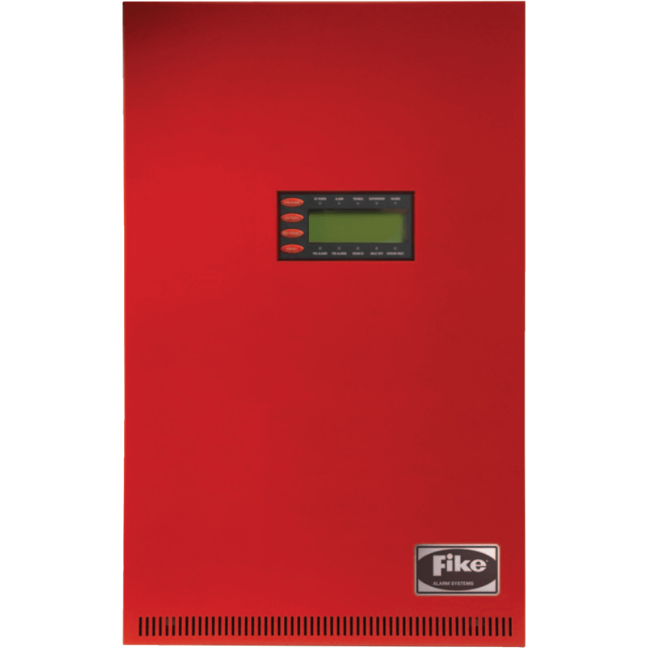

CyberCat 254 Fire Alarm Control System
Brand: Fike CorporationFike’s CyberCat 254 (P/N 10-066) is a state-of-the-art true intelligent digital peer-to-peer modular fire alarm control system.
It is ideal for all life safety and property protection applications and is intended for both commercial and industrial use.
It is designed with extensive programmability that allows the almost-instantaneous relay of information and the ability to perform process management tasks with ease including HVac shutdowns, Emergency Voice Evacuation, damper control, doors closure, elevator recall, security, and CCTV/Building Management Awareness.
Features- All Cybercat panels come standard with a controller, transformer and enclosure
- 254 user defined zones
- 80 character, backlit LCD display
- Real time clock
- 3200 event history buffer
- Critical process monitoring
- One-person walktest capability
- Disable by circuit or zone
- Drill function at panel and remote
- Provides solenoid releasing operation
- Alarm verification capability
- Easy to add/remove devices
- Diagnostic menus
- Removable terminal blocks for field wiring
- Local piezo with distinct event tones
- 10 Status LEDs to easily identify system status
- Optional point ID DACT Module available
- Supports up to 31 peripheral devices such as Remote Display, LED Graphic and Zone Annunciators
- Two standard enclosures sizes available with optional deadfront panel options (refer to data sheet D.1.26.01)
Specifications
Brand
Approvals & Certifications
- CSFM
- FM
- UL
Enclosure, Body Material
- Steel
Humidity
- 93 % Relative Humidity, Non-Condensing
Operating Temperature
- 0° to 49° C (32° to 120° F)
