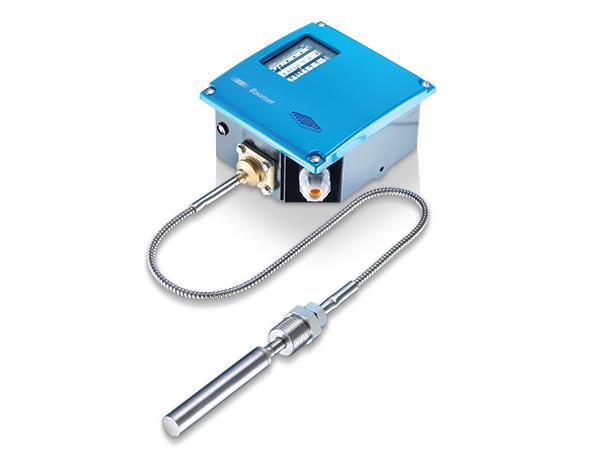

RTAY4 Industrial Temperature Switch
Brand: Bourdon
Features
- Excellent repeatability
- Dead band adjustment for regulation
- Fix dead band for control and alarm
- Intrinsic safety Hazardous area 0, 1, 2
Specifications
Brand
Adjustment
- 2 External Adjustment Screws on Top of the Case for Set Point & Deadband
Ambient Temperature Range
- -30° to +55° C
Approvals & Certifications
- ATEX/IECEx
- Low Voltage Directive (LVD) 2014/35/UE
Body
- Black Painted, Zamak
Bulb
- Stainless Steel 1.4404, AISI 316L
- Stainless Steel 1.4435, AISI 316L
Capillary
- Copper Alloy
- For Typicals of Protection See Ordering Details
Cover
- Black Painted, Zamak
- Captive Stainless Steel Screws
Electrical Connectors
- Via Internal Terminal Block with Plastic Cable Gland for Ø 7 to 10.5 mm
Ground Connection
- Via Internal Terminal Block
IP Protection Rating
- IP66
Maximum Temperature Range
- +200° to +270° C
Media Temperature
- -46° to +270° C
Minimum Temperature Range
- -46° to +0° C
Mounting
- Direct Mounting
- Wall Mounting Bracket
Process Connection Material
- Stainless Steel 1.4404, AISI 316L
Repeatability
- ± 1 % of Full Scale
Scale
- Internal, Accuracy on Reading ± 5 % of Full Scale
Storage Temperature
- -40° to +55° C
- Power generation safety equipment
