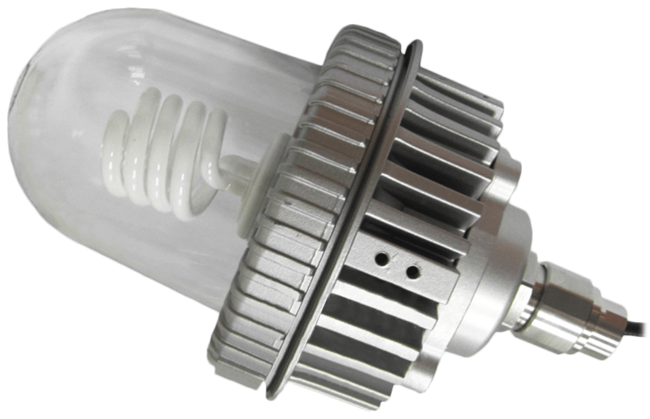

L1605B Hazardous Location Bulb Light (LED)
Brand: Top Hi-Tech Inc- Volt.: 110 V (27 W only) / 220 V AC
- Watt.: 23 W / 27 W
- Amps: 23 W (220 V: 0.10 A) / 27 W (110 V: 0.25 A, 220 V: 0.12 A)
- Frequency: 50 Hz / 60 Hz
- Power Factor: cos ≧ 0.9
Ambient Temperature: -20° C ~ +50° C, T5
Degree of Protection - IP67 / NEMA 6
TS Certification:
- Ex nR IIC T5 Gc
- Ex tb IIIC T100˚ C Db
- Power Saving Light
- Waterproof protection IP67
- Salt spray 1000 hrs passed
Applicable Location:
- Zone 1 & Zone 2
- Zone 21 & Zone 22
Specifications
Brand
Approvals & Certifications
- TS
Enclosure, Body Material
- Aluminum Alloy
Environmental Protection
- IP67
- IP68
- NEMA 6
- NEMA 6P
Frequency
- 50/60 Hz
Lens
- Tempered Glass
Lumens
- > 80 (Warm White), > 80 (Cool White)
Operating Temperature
- -20° to 40° C (-4° to 104° F)
Screw Material
- Stainless Steel
Voltage
- 110/220 Vac
Wattage
- 23 W / 27 W (0.1 to 0.245 A)
