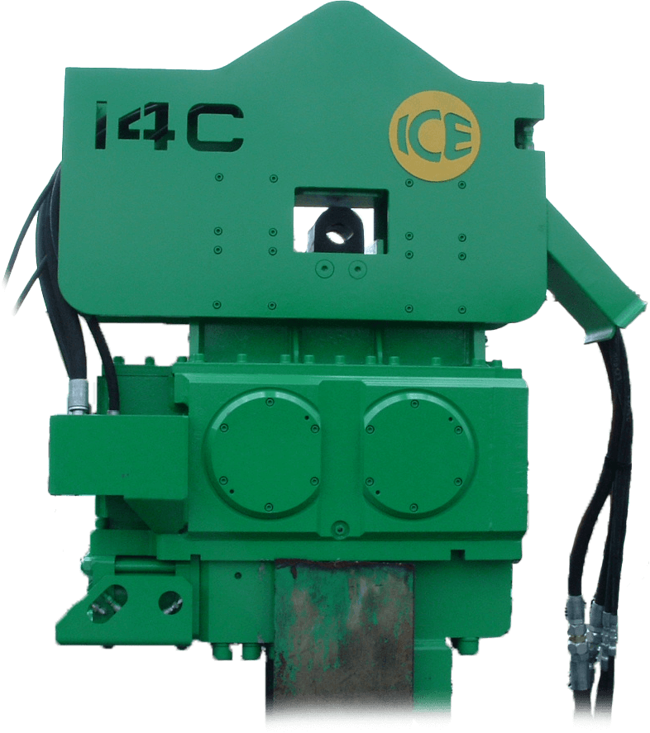

ICE 14-23 Vibratory Hammer
Brand: PACO Ventures, LLCThe ICE 14-23 has a patented design that combines high eccentric moment and suspended weight with clamp. Lighter weight provides for increased reach or use with smaller cranes. Reduced height for better access in low-overhead situations. Up to 48 tons (430 kN) line pull for extraction.
Patented Dual-pull suppressor provides maximum vibration isolation during driving and light extraction combined with high pull capability for tough extraction jobs.
Features- Patented Dual-pull™ suppressor provides maximum vibration isolation during driving and light extraction combined with high pull capability for tough extraction jobs.
- 225HP (168 kW) CAT C6.6 Tier 3 (State IIIA) engine meets all EPA & EU emission regulations.
- Optional 2,650 lbs (1200 kg) bias weights increase pile penetration rates in difficult soils.
- Full range of clamps available for sheet piling, H-Beams, pipe & caissons and timber & concrete piles.
- Maximum efficiency and reliability are provided by our open-loop hydraulic system and application proven piston pumps and motors.
- Remote-control pendant for vibrator and clamp with emergency stop. Engine speed control for fuel efficiency.
- Adaptable for underwater, low headroom or box leads operation.
- Environmentally friendly Chevron Clarity® non-toxic, biodegradable hydraulic oil.
- Designed and manufactured in the USA by ICE®, world leader in cost-effective foundation equipment since 1974.
Specifications
Brand
Eccentric Moment
- 1,400 in-lb (16 kgm)
Suspended Weight
- 5,280 lb (2,395 kg)
Maximum Frequency
- 1,900 VPM
Driving Force
- 74 tons (660 kN)
Amplitude
- 1.2 in (30 mm)
Maximum Line Pull for Extracting
- 48 tons (430 kN)
Length
- 65 in (1,635 mm)
Width
- 19 in (460 mm)
Height with Sheet Clamping
- 81 in (2,060 mm)
