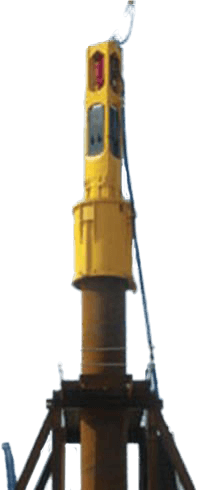

CG-240 Hydraulic Hammer
Brand: PACO Ventures, LLCThe CG range of piling hammers is designed for driving a variety of bearing piles including steel tube, combi piles, ‘H’ sections and reinforced / pre stressed concrete piles.
Operated from piling rig leaders or crane suspended, the CG range has the following important features: total control of hammer stroke and blow rate, allows precise matching of energy to suit the pile driving requirements, simple fast dolley changing, cylinder and dropweight connection with shock absorber, and is easily accessible.
Features- Total control of hammer stroke and blow rate.
- Allows precise matching of energy to suit the pile driving requirements. Digital readout of hammer performance in choice of units - (Stroke or Energy). Simple fast dolley changing.
- Cylinder and dropweight resilient connection , easily accessible.
- Economical - Low Hydraulic power requirement.
- Available with BSP Hydropacks which conform to latest emissions regulations. Can drive Piles with ultimate load bearing up to 14,500 kN
- Suitable for driving Raked (Batter) Piles.
Specifications
Brand
Ram Mass
- 35,275 lb (16,000 kgm)
Energy Range
- 176,320 ft-lb (239 kNm)
Blow Rate
- 31 bpm
Operating Pressure
- 4,130 psi (285 bar)
Hydraulic Flow Required
- 98 gpm (371 Lpm)
Hammer Weight
- Configuration A - 47,170 lb (21,396 kg)
- Configuration B - 47,170 lb (21,396 kg)
Total Length
- Configuration A - 33'-3"
- Configuration B - 26'-10"
- Configuration C - 25'-11"
Total Weight
- 74,074 lb (33,599 kg)
- 58,630 lb (26,594 kg)
- 53,140 (24,104 kg)
