MTS Sensors Magnetostrictive Linear Position Sensor, GB-M/GB-T Analog

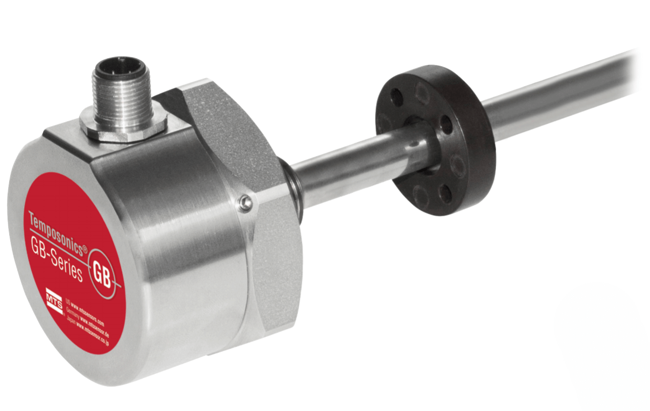

GB-M/GB-T Linear Position Sensor

Brand: Temposonics an Amphenol Company
Add Product to My Catalog

Robust, non-contact and wear free, the Temposonics linear position sensors provide the best durability and accurate position measurement solutions in harsh industrial environments.

The position measurement accuracy is tightly controlled by the quality of the waveguide which is manufactured by MTS Sensors. The position magnet is mounted on the moving machine part and travels non-contact over the sensor rod with the built-in waveguide.

The GB-M/GB-T is an extension of the GB-Series. Its compact housing can be easily mounted, even if there is only limited space.

Due to the high temperature resistance, no measures for cooling the sensor have to be taken – saving you time and work. Further advantages of the GB-M/GB-T sensor are: Turn me, Program me, Replace me.

Specifications

Brand

Approvals & Certifications

  • ISO 9001 (DQS)
  • CE
  • EMC Electromagnetic Emission EN 61000-6-4, Immunity EN 61000-6-2

Cable Length

  • 3 to 33 feet (1 to 10 metres)

Cable Material

  • PUR
  • Silicone
  • Teflon

Consumption

  • Current Consumption: 100 mA Typically Dependent on Stroke Length

Electrical Connectors

  • M12 Male A-Coded (5-Pin) Connector
  • M16 (6-Pin) Connector Male

Electrical Protection

  • Overvoltage Protection: up to 36 Vdc
  • Polarity Protection: up to -30 Vdc

Enclosure, Body Material

  • Sensor Electronics: AISI 303 Stainless Steel 1.4305

Environmental Protection

  • Ingress Protection: IP67 with Proper Mating Connector
  • Ingress Protection: IP68 for Cable Outlet

Length

  • Stroke Length: 1 to 128” (25 to 3,250 mm)

Linearity

  • ≤ ± 0.02 % of Full Scale (Min. ± 60 µm) Typical

Load

  • Minimum Load Controller: > 5 kiloohms for Voltage Output
  • Minimum/Max.imum

Materials of Construction

  • Sensor Rod: 304L Stainless Steel 1.4306, 1.4307

Metric Connection

  • M18 x 1.5-6 G

Mounting Position

  • Any Orientation

Operating Pressure

  • psi: 10,153 (kPa: 70,000, bar: 700) Peak (At 10 x 1 Min)
  • psi: 5,076 (kPa: 35,000, bar: 350)

Operating Temperature

  • -40° to 90° C (-40° to 194° F)
  • Option: -40° to 100° C (-40° to 212° F)

Operating Voltages

  • 24 Vdc (-15 / 20 %)

Output

  • 0-10 Vdc
  • 0-20 mA
  • 10-0 Vdc
  • 20-0 mA
  • 20-4 mA
  • 4-20 mA

Repeatability

  • ≤ ± 0.005 % of Full Scale (Min. ± 20 µm) Typical

Resolution

  • 16-bits (Min. 1 µm Depending on Stroke Length)

Rotation

  • 360°

Shock

  • 100 G (Single Shock) IEC 60068-2-27

UNF/UNC Connection

  • 3/4”-16 UNF Male-3A

Vibration

  • 15 G (10 to 2,000 Hz) IEC 60068-2-6 (Resonance Frequencies Excluded)

Voltage

  • Dielectric Strength: 500 Vdc (DC Ground to Machine Ground)

Documentation

Data Sheets
