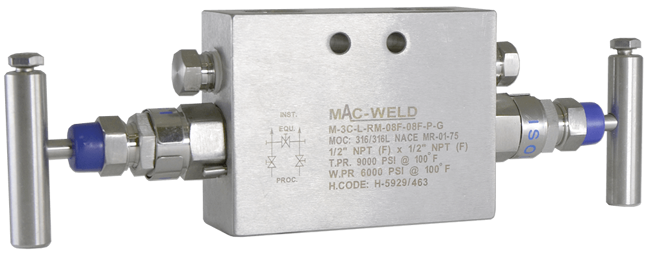

Mac-Weld, Manifold 3 Valve

3-Valve Series

Brand: Mac-Weld Machining Ltd
Add Product to My Catalog

Mac-Weld, Manifold 3 Valve Mac-Weld, Manifold 3 Valve Mac-Weld, Manifold 3 Valve
Features
  • Max Pressure: 6000 psi @ 100°F (38°C)
  • Inlet Connection: 1/2" NPT Female
  • Outlet Connection: 1/2" NPT Female, Flange
  • Standard Features:
    • PTFE Packing
    • Non-Rotating trim provides bubble tight shut-off
  • Construction Material:
    • Body: Stainless Steel
    • Trim: Stainless Steel
  • Options:
    • NACE certified wetted parts
    • Graphoil packing

1 - 5 of 5 Part Numbers
M-3BB-L-RM-08F-08F-V08F
M-3BB-L-RM-08F-08F-V08F
  • Valve Type - Block & Bleed
  • Enclosure Material - 316L Stainless Steel
  • Mounting - Remote Mount
  • Inlet (Process) Connection Size - 1/2" NPT Female
  • Outlet (Instrument) Connection Size - 1/2" NPT Female
  • Drain / Vent - 1/2" NPT Female
M-3C-L-RM-08F-08F-P
M-3C-L-RM-08F-08F-P
MAC-WELD 3-Valve Manifold, 316L SST, 1/2" FNPT x 1/2" FNPT, 6000 psi, PTFE Packing
  • M: Manifold
  • 3: 3 Valve
  • C: Horizontal
  • L: 316L Stainless Steel, NACE MRO175 And EN 10204 3.1 Compliant
  • RM: Remote Mount
  • 08F: 1/2" Female NPT (Threads to ASME B 1.20.10)
  • 08F: 1/2" Female NPT (Threads to ASME B 1.20.10)
  • P: 1/4" Female NPT Drain c/w Plug
  • (Blank): PTFE Packing
M-3C-L-RM-08F-08F-P-G
M-3C-L-RM-08F-08F-P-G
MAC-WELD 3-Valve Manifold, 316L SST, 1/2" FNPT x 1/2" FNPT, 600 psi, Graphite Packing
  • M: Manifold
  • 3: 3 Valve
  • C: Horizontal
  • L: 316L Stainless Steel, NACE MRO175 And EN 10204 3.1 Compliant
  • RM: Remote Mount
  • 08F: 1/2" Female NPT (Threads to ASME B 1.20.10)
  • 08F: 1/2" Female NPT (Threads to ASME B 1.20.10)
  • P: 1/4" Female NPT Drain c/w Plug
  • G: Graphoil Packing
M-3T-L-DM-08F-08F-P
M-3T-L-DM-08F-08F-P
  • Valve Type - T Type
  • Enclosure Material - 316L Stainless Steel
  • Mounting - Direct
  • Inlet (Process) Connection Size - 1/2" NPT Female
  • Outlet (Instrument) Connection Size - 1/2" NPT Female
  • Drain / Vent - 1/4" NPT Female
M-3T-L-DM-08F-FLG-P
M-3T-L-DM-08F-FLG-P
  • Valve Type - T Type
  • Enclosure Material - 316L Stainless Steel
  • Mounting - Direct
  • Inlet (Process) Connection Size - 1/2" NPT Female
  • Outlet (Instrument) Connection Size - Flange
  • Drain / Vent - 1/4" NPT Female
1 - 5 of 5 Part Numbers

View_Details

Specifications

Brand

Enclosure, Body Material

  • 316L Stainless Steel

Handle Assembly Material

  • 304 Stainless Steel

NACE & NIST

  • NACE

NPT Inlet

  • 1/2” NPT Female

NPT Outlet

  • 1/2” NPT Female

Pressure Rating

  • psig: 6,000 at 38° C (100° F)

Seal Retainer

  • PTFE

Valves

  • Three
