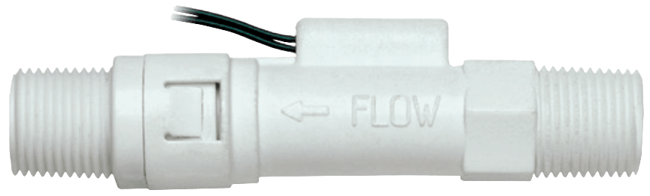

FS-380P Series In-Line Plastic Flow Switch
Brand: Gems Sensors, Inc
This rugged inline flow switch offers the same superior performance to non-clogging as its metal cousin (FS-380). The fixed set point and simple design make it a dependable switch.
The FS-380P is an ideal choice for coolant applications requiring reliable flow detection in HVAC, semiconductor, welding, medical and other industries.
1/4" quick disconnect units have a host of snap-on mating adapters to fit most piping requirements.
Features- Flow Rate Settings: 0.07 GPM to 2.00 GPM
- Port Size: 3/8˝ NPT Male and 1/4˝ Quick Disconnect (QDC) Male
- Primary Construction Material: Polypropylene
- Setting Type: Fixed
Specifications
Brand
Accuracy
- Set Point Accuracy: 20 %
Approvals & Certifications
- CE
- RoHS
- UL (C)
- UR (C,US): File E31926
BSP Connection
- 1/4" BSPT Male
- 3/8" BSPT Male
Electrical Connectors
- 24" to 26" Polymeric Leads, 22 AWG
Electrical Rating
- 10 VA Normally Open at No Flow
Enclosure, Body Material
- Glass Reinforced Polypropylene
Filter
- 100 microns
Flow Rate
- 0.07 to 2.00 gpm
NPT Connection
- 1/4" NPT Male
- 3/8" NPT Male
O-Ring Material
- Fluorocarbon
Operating Pressure
- psi: 125 (kPa: 861.8, bar: 8.618) at 21° C (70° F)
- psi: 50 (kPa: 344.7, bar: 3.447) at 100° C (212° F)
Operating Temperature
- -18° to 100° C (0° to 212° F)
Piston Material
- PPS Composite
Spring Material
- 316 Stainless Steel
Switch Type
- SPST
Tube Connection
- 1/4" O.D. Tube
- 3/8" O.D. Tube
Wetted Materials
- Glass Reinforced Polypropylene
