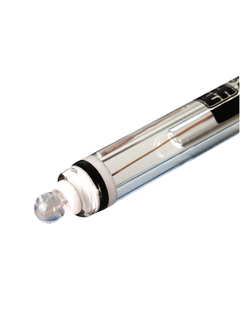

Analog pH Sensor Orbisint CPS11
Brand: Endress+Hauser AG
Orbisint CPS11 is the all-rounder for pH measurement in process and environmental applications.
It performs reliably and accurately even in highly alkaline media or hazardous areas.
Designed for low maintenance and a long operating life, the sensor offers you best value for money.
- Long-term monitoring and limit monitoring of processes with stable process conditions:
- Chemical industry
- Pulp & paper industry
- Power plants (e.g. flue gas washers, boiler feed water)
- Incineration plants
- Water treatment:
- Drinking water
- Cooling water
- Well water
With ATEX, FM, CSA approval for use in hazardous areas.
Features- Robust electrode with long poison diffusion path, requires low maintenance due to large, dirt-repellent PTFE ring diaphragm
- Suitable for harsh applications: Process glass for highly alkaline media and pressure-stable up to 16 bar (232 psi)
- Optional salt ring for low conductivity applications such as boiler feed water and water for injection
Specifications
Brand
Measuring Range
- pH 0-14
Material of Construction
- Glass / PTFE
Process Temperature
- Max 135° C (274° F)
Process Pressure
- Max 16 bar (230 psi)
Connection
- TOP68 Connection Head
Ingress Protection
- IP68
Temperature Sensor
- Optional with Integrated Pt100 or Pt1000
Certifications & Approvals
- TÜV
- ATEX, FM, CSA
Dimensions
- Diameter: 12 mm (0.46 inch)
- Shaft Length: 120, 225, 360 and 425 mm (4.68, 8.77, 14.04 and 16,57 inch)
- Chemical Industry
- Pulp & Paper Industry
- Power Plants (e.g. Flue Gas Washers, Boiler Feed Water)
- Incineration Plants
- Water Treatment
