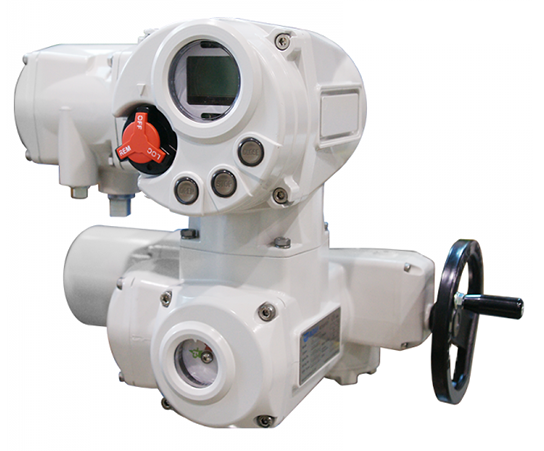

MS Series Electric Actuator
Brand: NOAH Actuation Co., Ltd.
Features
- MS Series are Suitable for Small Multi-turn Industrial Valves.
- As Mechanical Limit Gearbox Controls the Position, it Enable to Memorize the Position in Power Loss.
- Provide Information Such as the Current Position and Status of the Valve Through Wide LCD Window - Integral Type Only
- Easy to Set and Operate by Means of Remote Controller or Push Button and Selector Switch - Integral Type Only
- IP68 is Served as Standard.
- ATEX / IECEx Certified - Ex D IIC T4
- Motor F Class as an Standard, H Class as an Option. / Normal Efficiency IE1 as an Standard, High Efficiency as an Option.
- Wireless HART, HART, Foundation Field Bus, Profibus, Modbus.
- Self Diagnosis Function - Integral Type Only
- Bluetooth Function with Mobile Phone Application to Control the Actuator Is Served as an Option.
Specifications
Brand
Enclosure
- Weatherproof IP68
- NEMA 6P
Ambient Temperature
- Standard : -20° C~+70° C / Explosion-proof : -20° C ~+55° C (Option) / Low Temperature : -40° C ~ +50° C, -60° C ~ +50° C (Option)
Power Supply
- 3-phase 220 / 230 / 240 / 380 / 400 / 415 / 440 / 460 / 480 Vac 50/60 Hz 1-phase 110 / 120 Vac 50 / 60 Hz, 1-phase 220 / 230 / 240 Vac 50 / 60 Hz
Torque Range
- 3-phase : 40~70Nm (Without Gearbox) 1-phase : 40Nm
Stall Protection
- Built-in Thermal Protection
Handle Type
- Side Hand Wheel
Limit Switches
- Open : 1ea / Close : 1ea
- Dry Contact Open : 1ea / Close : 1ea
Torque Switches
- Open : 1ea / Close : 1ea
Duty Cycle
- 3-phase : S2-30 min / 1-phase S2-15 min
Base
- ISO 5210 (F10)
Cable Entries
- 1*PF 1"
- 2*PF 3/4" 1*NPT 1"
- 2*NPT 3/4" 1*M32 *Pitch1.5
- 1*M25*Pitch1.5
Lubrication
- Shell OMALA S2 G68
External Material
- Aluminum Alloy
Surface Treatment
- Anodizing
External Coating
- Polyester(TGIC Free)
