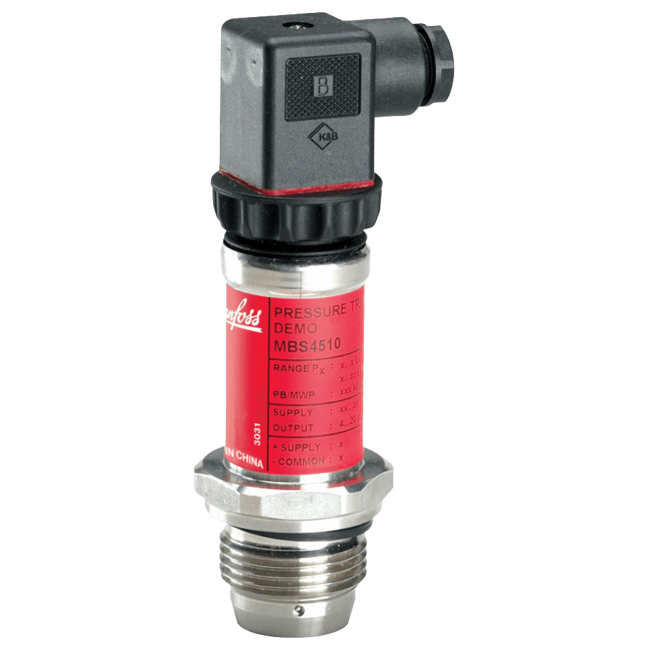

MBS 4510 Pressure Transmitter
Brand: DanfossThe high accuracy flush diaphragm pressure transmitter MBS 4510 is designed for use in non-uniform, high viscous or crystallizing media within industrial applications, and offers a reliable pressure measurement, even under harsh environmental conditions.
The flexible pressure transmitter programme covers a 4 to 20 mA output signal, absolute or gauge (relative) versions, measuring ranges from 0 to 0.25 to 0 to 25 bar zero and span adjustment. A rotatable plug connection and a G1" A conic pressure connection with flush mounted diaphragm.
Excellent vibration stability, robust construction, and a high degree of EMC/EMI protection equip the pressure transmitter to meet the most stringent industrial requirements.
Features- Designed for use in severe industrial environments
- Enslosure and wetted parts of acid-resistant stainless steel (AISI 316L)
- Pressure ranges in relative (gauge) or absolute up to 25 bar
- Output signal: 4-20 mA
- Temperature compensated and laser calibrated
- Accuracy 0.5% FS
- Zero and span adjustment
- USDA-H1 approved oil filling
- For use in Zone 2 explosive atmosphere
Specifications
Brand
Accuracy
- ≤ ± 0.2 % of Full Scale - Typical Including Non-Linearity
- ≤ ± 0.5 % of Full Scale, Max.
Ambient Temperature Range
- -10° to 85° C (14° to 185° F)
Approvals & Certifications
- EN 60079-0
- EN 60079-15
- ATEX Zone 2 II 3 G Ex NA IIA T3 Gc -20° < Ta < 85° C
- CE
- EMC: EN 61000-6-3 (Emission), EN 61000-6-2 (Immunity)
- IEC
BSP Connection
- G 1” A Male
Burst Pressure
- psi: 725.2 to 1,450 (kPa: 5,000 to 10,000, bar: 50 to 100)
Compensated Temperature
- 0° to 80° C (32° to 176° F)
Current
- 28 mA Typical - Current Limitation (Linear Output Signal up to 1.5 x Rated Range)
Electrical Connectors
- DIN 3869-33
- PG9 (EN 175301-803-A)
Electrical Protection
- Polarity
- Short Circuit
Enclosure, Body Material
- 316L Stainless Steel, EN 10088-1
Environmental Protection
- Explosion-proof (Ex II 3 G, Ex NA IIA T3 Gc)
- IP65
Gasket Material
- NBR
Hysteresis
- ≤ ± 0.1 % of Full Scale
Insulation Resistance
- > 100 megaohms at 100 V
Materials of Construction
- Glass-Filled Polyamide PA 6.6 - Electrical Connection Material
Mounting
- Flush Mounted
Non-Linearity
- ≤ ± 0.2 % of Full Scale - BFSL (Conformity)
Output
- 4-20 mA, 2-Wire - Nominal Output Signal (Short-Circuit Protected)
Overpressure & Static Pressure Limits
- psi: 29.01 to 1,450 (kPa: 200 to 10,000, bar: 2 to 100) - Max.
Pressure Range
- bar: 0 to 25
- kPa: 0 to 2,500
- psi: 0 to 362.6
Pressure Type
- Absolute
- Gauge
Repeatability
- ≤ ± 0.1 % of Full Scale
Response Time
- < 4 milliseconds
Shock
- 1 metre Free Fall as Per IEC 60068-2-32
- 500 G, 1 millisecond as Per IEC 60068-2-27
Span & Zero Adjustments
- -5 to 10 % of Full Scale - Zero Point Adjustment
- -5 to 20 % of Full Scale - Zero Point Adjustment
- -5 to 5 % of Full Scale - Span Adjustment
Span & Zero Effect
- ≤ ± 0.2 % of Full Scale/10K - Thermal Zero Point Shift & Thermal Sensitivity (Span) Shift
- ≤ ± 0.3 % of Full Scale/10K - Thermal Zero Point Shift & Thermal Sensitivity (Span) Shift
- ≤ ± 0.35 % of Full Scale/10K - Thermal Zero Point Shift & Thermal Sensitivity (Span) Shift
- ≤ ± 0.4 % of Full Scale/10K - Thermal Zero Point Shift & Thermal Sensitivity (Span) Shift
Storage Temperature
- -25° to 85° C (-13° to 185° F)
Supply Voltage
- ≤ ± 0.1 % of Full Scale/10 V - Supply Voltage Dependency
- 10-30 Vdc - Polarity Protected
Temperature Range
- -10° to 85° C (14° to 185° F) - ATEX Zone 2 Sensor Temperature Range
- -40° to 85° C (-40° to 185° F) - Normal Sensor Temperature Range
Torque
- 60 Nm (531 In/Lbs)
Vibration
- Random Vibration: 7.5 G RMS, 5 to 1,000 Hz as Per IEC 60068-2-64
- Sinusoidal Vibration: 15.9 mm-pp, 5 to 25 Hz as Per IEC 60068-2-6
- Sinusoidal Vibration: 20 G, 25 to 2,000 Hz as Per IEC 60068-2-6
Wetted Materials
- 316L Stainless Steel, 1.4401, EN 10088-1
