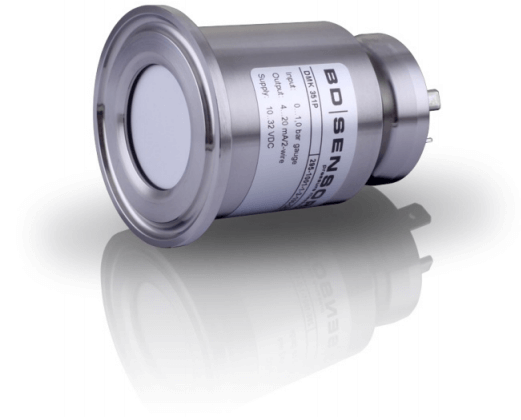

DMK 351P Pressure Transmitter

Brand: BD Sensors

The pressure transmitter DMK 351P has been designed for measuring small system pressure in the food industry and chemical industry.

The DMK 351P is based on an own-developed capacitive ceramic sensor element.

It features high overpressure resistance and high resistance against most of aggressive media.

A variety of different process and electrical connections and an intrinsically safe version complete the range of possibilities.
Features
  • Nominal pressure: 0 ... 40 mbar up to 0 ... 20 bar
  • Accuracy: 0.35 % (opt. 0.25 %) FSO
  • Hygienic version
  • High overpressure capability
  • Several process connections

Specifications

Brand

Approvals & Certifications

  • ATEX: IBExU05-ATEX-1070 x for DX14-DMK 351P, 2014/34/EU
  • CE-Conformity
  • EMC: Emission & Immunity According to EN 61326 & 2014/30/EU
  • REACH
  • RoHS
  • TÜV NORD
  • UL (C,US)

Approvals & Certifications

  • ISO 9001

BSP Connection

  • G 1-1/2”

Diaphragm Material

  • Ceramic Al₂O₃ 96 %, Al₂O₃ 99.9 %

Enclosure, Body Material

  • 316L Stainless Steel

Environmental Protection

  • IP65
  • IP67
  • IP68

Flange Size - 1” (DN 25)

  • 1” (DN 25) - PN 40 (DIN 2501)

Flange Size - 2” (DN 50)

  • 2” (DN 50) - PN 40 (DIN 2501)

Flange Size - 3” (DN 80)

  • 3” (DN 80) - PN 16 (DIN 2501)

Output

  • 0-10 V, 3-Wire
  • 4-20 mA, 2-Wire

Pipe Connection

  • 1-1/2” Pipe Dairy Pipe (DIN 11851)
  • 2” Pipe Dairy Pipe (DIN 11851)

Pressure Range

  • bar: 0.03 to 19.61
  • kPa: 3.92 to 1,961
  • meter WC 0.4 to 200
  • psi: 0.56 to 284.5

Pressure Type

  • Absolute
  • Gauge

Tri-Clamp Connection

  • 1-1/4” Tri-Clamp (DIN 32676)
  • 2” Tri-Clamp (DIN 32676)

  • Mechanical And Plant Engineering
  • Chemical Industry
  • Laboratory
  • Medical Technolgy
  • Food And Beverage
  • Packaging And Paper Industry
