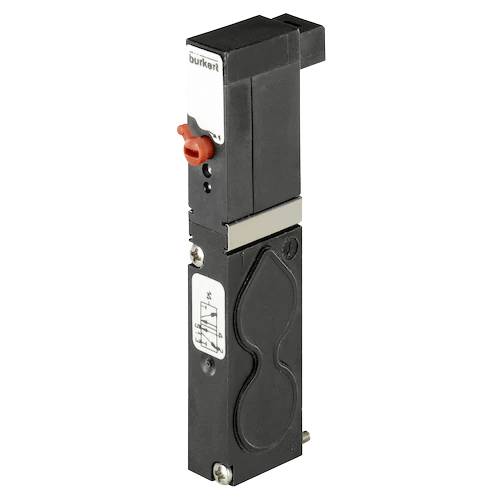

6511 5/2-Way Solenoid Valve
Brand: Burkert Fluid Control Systems
Type 6511 consists of the pilot flipper solenoid valve Type 6144 and a pneumatic seat valve.
The Flipper principle allows switching of high pressures with low power consumption and with short switching times. All valves are equipped with manual override as a standard.
Type 6511 is extendable and preferably with a cable plug at the back of the valve island, Type 8640, and with the plug connection at the front of the valve block in the pneumatic control actuators.
1 - 12 of 17 Part Numbers
134 742
- Model - Module Type MP02
- Connector - Connector Module Left, NPT 1/8”
134 743
- Model - Module Type MP02
- Connector - Connector Module Right, NPT 1/8”
134 744
- Model - Module Type MP02
- Connector - Basic Module 3 Valves, Push-In Connection
135 005
- Model - Module Type MP02
- Connector - Connector Module Left, G 1/8”
135 006
- Model - Module Type MP02
- Connector - Connector Module Left, Push-In Connection Diameter 8 mm
135 007
- Model - Module Type MP02
- Connector - Connector Module without Supply, Left
135 008
- Model - Module Type MP02
- Connector - Connector Module Right, G 1/8
135 009
- Model - Module Type MP02
- Connector - Connector Module Right, Push-In Connection Diameter 8 mm
135 010
- Model - Module Type MP02
- Connector - Basic Module 2 Valves, M5
135 011
- Model - Module Type MP02
- Connector - Basic Module 2 Valves, Push-In Connection
135 012
- Model - Module Type MP02
- Connector - Basic Module 3 Valves, M5
135 013
- Model - Module Type MP02
- Connector - Basic Module 12 Valves, M5
1 - 12 of 17 Part Numbers
Specifications
Actuator Type
- Pneumatic
Ambient Temperature Range
- 0° to 55° C (32° to 131° F)
Approvals & Certifications
- VDE 0580
BSP Connection
- G 1/8”
Duty Cycle
- Continuous Operation 100 % ED
Electrical Connectors
- Pneumatic Module: Typical MP02 with M5
- Push-In Connection [Diameter (4 mm)]
- Rectangular Plug, 2-Pin with Raster (5.08 mm)
Enclosure, Body Material
- Polyamide (PA)
- Polyphenylene Sulfide (PPS)
Environmental Protection
- IP40
Flow Rate
- Air: 130 QNn (L/min)
Media
- Dry Compressed Air
- Lubricated Oil Free
- Neutral Gases (5 μm Filter Recommended)
Mounting
- DIN/EN Rail 50045
- Manifold Mounting on Wall
Mounting Position
- Preferably with Actuator Upright
NPT Connection
- 1/8” NPT
Operating Voltages
- 24 Vdc
Orifice Size
- 0.09” (2.50 mm)
Override
- Manual Override
Power
- Nominal: 0.8 W
Pressure Range
- psi: 36.26 to 145 (kPa: 250 to 1,000, bar: 2.5 to 10)
Process Temperature
- 0° to 50° C (32° to 122° F)
Response Time
- Closing: < 10 milliseconds - According to ISO 12238
- Opening: < 15 milliseconds - According to ISO 12238
Seat / Seal Material
- Seal: FKM
- Seal: NBR
Solenoid Type
- 5/2-Way
Tolerance
- Voltage: ± 10 %
