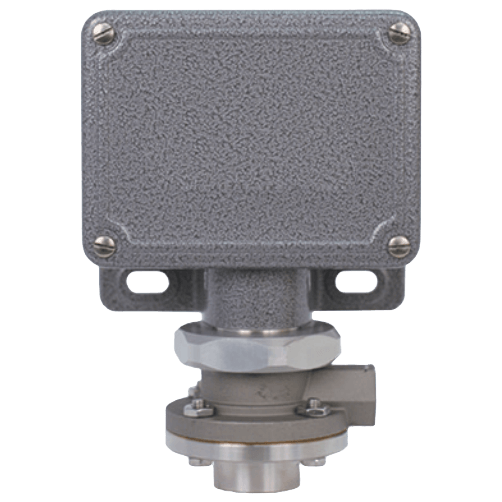

101/121 Differential Pressure Switch
Brand: Cameron
101/121 differential pressure switches are rugged, field-mounted instruments that incorporate a flexible modular design providing cost effective sensing solutions.
The two-piece piston design allows for complete differential pressure reversal without damage.
101/121 differential pressure switches are suited for low-to-high differential pressure, fluid power or process applications where high and varying static pressures, high overrange, proof, shock pressure or cycle rates are expected.
Features- Modular Design: Wide range of electrical enclosures available
- Robust Construction: Rugged, high cycle rate tolerance, long life, not critical to vibration, high overrange and proof pressures, withstands full Hi and Lo side pressure reversals, excellent corrosion resistance to hostile environments
- Instrument Quality: High repeatability, narrow dead band, negligible temperature effect and static influence.
- Wetted Parts: Wide selection of materials
- Field Adjustable:
- Excellent resolution of Set Points, adjustment, no special tools required
- No-charge factory calibration
- Agency Listings/Certification
- Select models with ATEX, CSA, UL
- Meets most code and customer requirements
- Delivery
- Routine shipments 7 to 10 working days
- Emergency shipments via air same day
- Service: Factory service engineers and area factory representatives provide effective and prompt worldwide service
- 3 years warranty from date of manufacture
Specifications
Brand
Ambient Temperature Range
- -54° to 204° C (-65° to 400° F)
Approvals & Certifications
- Calibration
- Compliance/Conformance
- Dielectric Test
- Hydrostatic Pressure Test
- Inspection Report
- Insulation Resistance
- Typical Material of Wetted Parts
Approvals & Certifications
- ATEX: EEx d IIC T6/T5, Ex ia IIC T6 to T4 Gb
- CSA: for Hazardous Locations Class I, Grade A, B, C, D, Class II, Groups E, F, G, Divisions 1 & 2
- SAA
- UL: for Hazardous Locations Class I, Groups B, C, D, Class II, Groups E, F, G, Divisions 1 & 2
BSP Connection
- 1/4” BSP Female
Cover Material
- Aluminum
Deadband
- psi: 0 to 20 (kPa: 0 to 138, bar: 0 to 1.38)
Diaphragm Material
- 316 Stainless Steel
- Hastelloy B
- Teflon-Coated Polyimide
- Viton
Electrical Connectors
- 1/2” NPT Male
- 3/4” NPT Female
- Exposed Contacts
- M20 x 1.5
Electrical Contacts
- Normally Closed
- Normally Open
Electrical Rating
- 0.25-7 A at 30-250 Vdc - Resistive
- 1-15 A at 125-250 Vac
Enclosure, Body Material
- 316 Stainless Steel
- Aluminum
- Carbon Steel
- Cast Iron
- Copper-Free Aluminum
Environmental Protection
- Explosion-proof
- Hazardous Area
- IP65
- NEMA 1
- NEMA 4
- NEMA 4X
- Non-Hazardous Area
Gasket Material
- Cover: Heavy Duty with Viton - Gasket Material
- Neoprene Cover Gasket
Maximum System Pressure
- psi: 1,000 (kPa: 6,895, bar: 69) - 121 Model
- psi: 500 (kPa: 3,447, bar: 34.47) - 101 Model
NPT Connection
- 1/4” NPT Female
O-Ring Material
- Buna-N
- Viton
Pressure Range
- psid: 0 to 500 (kPa: 0 to 3,447, bar: 0 to 34.47)
Process Connection Material
- 316 Stainless Steel
- CF-8M Cast Alloy
Set Point - Decreasing
- bar: 0 to 34.5
- kPa: 0 to 3,447
- psi: 0 to 500
Set Point - Increasing
- bar: 0 to 34.5
- kPa: 0 to 3,447
- psi: 0 to 500
Switch Type
- DPDT
- SPDT
System Pressure
- bar: 0 to 68.95
- kPa: 0 to 6895
- psi: 0 to 1000
Temperature Range
- 0° to 204° C (32° to 400° F) - Viton (O-Ring Material)
- -34° to 204° C (-30° to 400° F) - TCP-Teflon Coated Polyimide (O-Ring & Diaphragm Material)
- -34° to 93° C (-32° to 200° F) - Buna-N (O-Ring Material)
- Air
- Fluid Power
- Low to High Differential Pressure
- Oil & Non-Corrosive Process
- Process Applications
- Water
