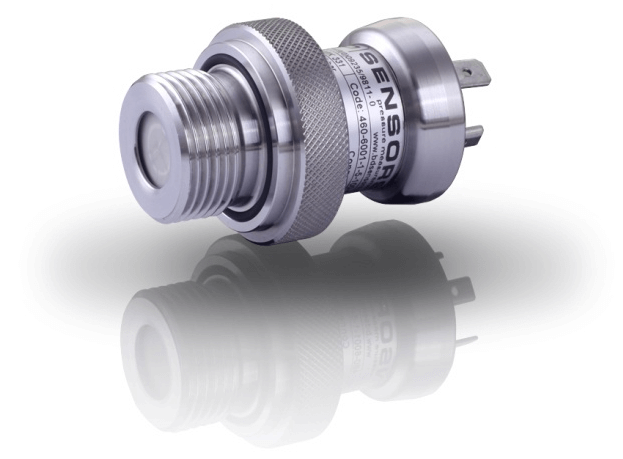

LMK 331 Screw-In Transmitter
Brand: BD SensorsThe screw-In Transmitter LMK 331 has been especially designed for level and process measurement and is suitable for pressure measurement of liquids, oils and gases.
Usage in more viscous or polluted media is possible because of the semi-flush pressure sensor.
For the usage in aggressive media we recommended the version with PVDF pressure port.
Additional features like example an intrinsically safe version or a functionally safe version (SIL 2) complete the range of possibilities.
Features- Pressure port PVDF for aggressive media
- Different electrical and mechanical connections
- Customer specific versions
Specifications
Brand
Approvals & Certifications
- ISO 9001
Approvals & Certifications
- CE-Conformity
- EMC: Emission & Immunity According to EN 61326, 2014/30/EU
- IBExU 10-ATEX-1068 x for DX19-LMK 331, 2014/34/EU
- IECEx IBE 12.0027X for DX19-LMK 331
- REACH
- RoHS
- TÜV NORD
- UL (C,US)
BSP Connection
- G 3/4" Male Flush (DIN 3852) with ISO 4400
Diaphragm Material
- Ceramics Al₂O₃ 96 %
Enclosure, Body Material
- 303 Stainless Steel, 1.4305
- 316L Stainless Steel, 1.4401
- Cable Gland Brass Nickel-Plated
- PVDF
Environmental Protection
- IP65
- IP67
- IP68
Output
- 0-10 V, 3-Wire
- 0-20 mA, 3-Wire
- 4-20 mA, 2-Wire
Pressure Range
- bar: 0.39 to 58.84
- kPa: 39.23 to 5,884
- meters WC: 4 to 600
- psi: 5.68 to 853.4
Pressure Type
- Gauge
- Mechanical and Plant Engineering
- Energy Industry
- Medical Technology
- Environmental Industry
